Product Details:
Payment & Shipping Terms:
|

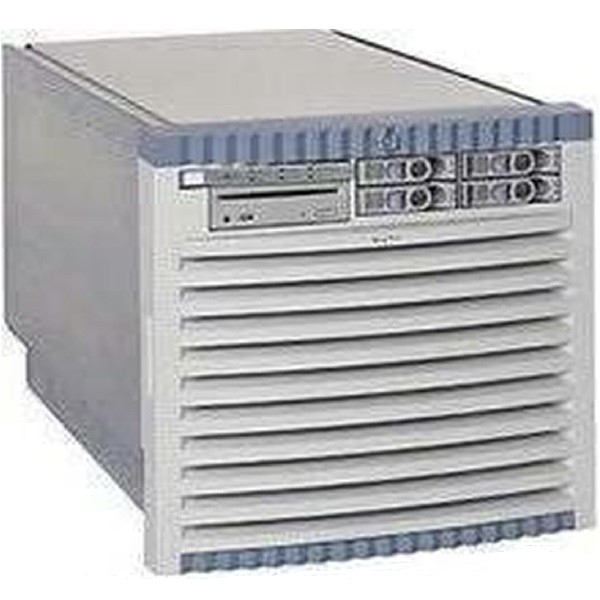

Name: | HP 9000 RP7440 8-Processor Server AD027A | Status: | Stock |
---|---|---|---|
Area: | Global | Express: | DHL EMS FEDEX |
High Light: | 8 Processor HP RP7440,HP RP7440 server pc motherboard,HP RP7440 8 processor motherboard |
Part Number | Description |
CPU | |
AB313-69012/AB313-67012 | Processor kit - Cell with 2x Dual-Core PA-8900 CPU modules, 1.068GHz, 3Mb cache |
AD110-69001/AD110-67001 | Processor kit - CPU Module, Dual-Core, PA-8900, 1.068GHz, 3 MB cache, 64 MB L2 cache - Includes two aligment rods |
Processor Board | |
AB312-69301/AB312-67001 | Printed Circuit Assembly (PCA) - System Backplane |
AB315-60301 | Printed Circuit Assembly (PCA) - Management Processor (MP)/Small Computer Systems Interface (SCSI) Core IO |
Memory | |
A9843-69001 | 1.0GB DIMM memory module - Double Data Rate 2 (DDR2) |
A9846-69001 | 2.0GB DIMM memory module - MAMM4 2.0GB, DDR-2 |
A9849A/A9849-69001 | 4.0GB DIMM memory module - MAMM, Double Data Rate 2 (DDR2) |
Hard Drive | |
AB420-69001/AB420-67001 | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
AB421-69001/AB421-67001 | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon black and port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
AB422-69001/AB422-67001 | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
AB423-69001/AB423-67001 | 300GB Small Computer Systems Interface (SCSI) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
Backplane Board | |
AB312-60203 | Printed Circuit Assembly (PCA) - Mass Storage Backplane |
Ethernet | |
AB290-69002/AB290-67002 | Dual port 10base-T/100base-TX LAN and dual port Ultra2 low voltage differential/single-ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-PIN very high density connectors |
Fibre | |
A9784-60002 | 2GB dual-channel PCI-X Fiber Channel (FC) 1000base-T Host Bus Adapter (HBA) board combo |
A9784-69003 | 2GB dual-channel PCI-X Fiber Channel (FC) 1000base-T Host Bus Adapter (HBA) board combo - Order A9784-60001 |
A9784A | 1000base-T and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, copper and short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC and RJ-45 connectors |
A9784AX | 2GB dual-channel PCI-X Fiber Channel (FC) 1000base-T Host Bus Adapter (HBA) board combo - Order A9784-60001 |
Power | |
0950-4637 | Power Module 48VDC - PCIX N+1 |
0957-2183/A6093-69021 | Bulk power supply - Redundant hot-swap power supply - (Celestica) |
VRM | |
0950-4741 | Voltage regulator module (VRM) - DC to DC, programmable, 48 Volt DC (VDC) |
DVD | |
AB351-67002/AB351-2100A | Server optical drive - Integrated Drive Electronics (IDE) DVD +RW |
AD013-2101A | Server optical drive (Black) - DVD+R/RW, slimline form factor, includes 2 A-cards |
AD143-2100A | Server optical drive (Black) - DVD+R/RW, slimline form factor, 8X speed, S5, carbonite |
Tape | |
393484-001 | HP StorageWorks DAT 72GB Ultra160 LVD SCSI internal tape drive |
Fan | |
A6093-00276 | Fan - Cell Controller, DNA Turbo Cooler |
A6752-04071 | Smart fan assembly - For hot-swap PCI card cage (PCI C/C) |
A6752-67129/A6752-67046/A6752-67029 | Smart fan - Front/rear hot-swap, assembly |
AB388-00005 | TurboCooler fan - 66mm, Central Processing Unit (CPU) |
Rack | |
A6752-67011 | CD/DVD-ROM drive mounting rail |
Cable | |
8120-6895 | Power cord (Black) - 15 AWG, 4.5m (14.8ft) long - Has a stripped end for power input and straight C19 (F) receptacle for power output |
8120-8494 | Power cord (Black) - 15 AWG, 4.5m (14.8ft) long - Has NEMA L6-20P (M) plug for power input and (F) C19 receptacle for power output (for 240VAC in North America) - (E7803A) |
8121-0070 | Power cord (Black) - 15 AWG, three conductor, 4.5m (14.8ft) long - Has straight (F) C19 receptacle (For 220V in China) |
8121-0802 | Jumper power Cord (Black) - C20 (M) connector to C19 (F) connector - Three conductor, 2.5m (8.2ft) long (Option 926) |
8121-0806 | Power cord - Jumper cable, 4.5m (14.7ft) long, C19/C20 |
A6093-63044 | Cable - Intrusion Switch |
A6752-63021 | Cable - Hot-swap System PCI Fan Internal Power Cable |
A6752-63024 | Power cord - Main power harness |
A6752-63025 | Power cable - For front and rear hot-swap system fans, system fan external cable |
A7027-63003 | Cable - Internal smart array RAID cable |
AB312-2002A | Cable - Mass Storage Power |
AB312-2003C | Cable - Small Computer Systems Interface (SCSI) Bundle |
AB312-2010A | Cable - DVD power cable, short |
Other | |
5040-6317 | Chassis intrusion switch |
A5201-68003 | DIMM module installer tool |
A5201-68004 | Anti-static mat, 24in x 36in with grounding strap |
A5201-68017 | DIMM module removal tool |
A6093-67114 | PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable |
A6912-00014 | DVD-ROM drive slot filler panel (Carbon) |
A6913-67005 | Processor cell board air flow baffle |
AB297-63002 | Clock oscillator kit |
AB297-69101/AB297-67001 | PCI-X Backplane - Card Cage Assembly |
AB312-2102A | Hardware kit - Front panel display bezel mitt |
AB312-2108A | Hardware - Nameplate for RX7640 |
AB312-60102 | Printed Circuit Assembly (PCA) - Front Panel (Display) |
C2786-40002 | Attachment snap |
