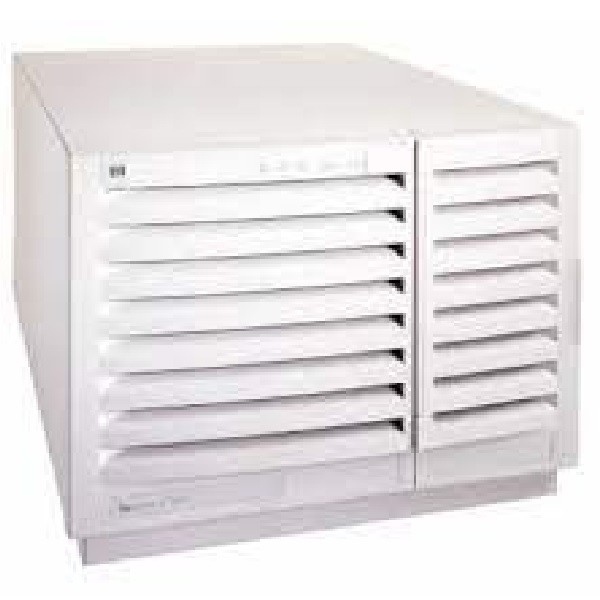

HP 9000 Server L2000B (RP5450) A5191B
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | HP 9000 Server L2000B (RP5450) A5191B | Status: | Stock |
|---|---|---|---|
| Area: | Global | Express: | DHL EMS FEDEX |
HP 9000 Server L2000B (RP5450) A5191B
component parts for the L2000B (RP5450) A5191B
| Part Number | Description |
| CPU | |
| A3639-69012 | PA-RISC 8500/8600 processor support module - Provides power for two processors - One required for every two processors |
| A5521-69001 | HP PA-RISC 8500 processor - 360MHz with 1.5MB cache - Includes attached heat sink |
| A5522-69001 | HP PA-RISC 8500 processor - 440MHz with 1.5MB cache - Includes attached heat sink |
| A5522A | HP PA-RISC processor upgrade kit - Includes one 440MHz PA-RISC 8500 processor with 1.5MB cache and attached heat sink |
| A5796A | PA-RISC 8500/8600 processor support module - Provides power for two processors - One required for every two processors |
| A6146A | HP PA-RISC processor upgrade kit - Includes one 550MHz PA-RISC 8600 processor with 1.5MB cache and attached heat sink - Operates at 540MHz in L1000 and Level-2000 systems |
| Processor Board | |
| A5191-69102 | PCI I/O backplane board - Has 12 PCI slots - L1000/L2000 PCI I/O backplane board - Has 12 PCI slots - in the chassis |
| A5191-69116 | System board - For 1-4 way processor config. - L1000/2000 System board - For 1-4 way processor config. - Mounts horizontally in the center of the chassis |
| A5191-69210 | Platform monitor PC board - Plugs into the system board at the back of the chassis |
| Memory | |
| A5554-69002 | 128MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (256MB kit is A5554A) |
| A5554A | HP 256MB ECC DIMM high-density memory upgrade kit - Includes two 128MB SDRAM DIMM modules |
| A5797-69101 | 256MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (512MB kit is A5797A) |
| A5797A | HP 512MB ECC DIMM high-density memory upgrade kit - Includes two 256MB SDRAM DIMM modules |
| A5798-69001 | 512MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (1024MB kit is A5798A) |
| A5798A | 1024MB ECC DIMM high-density memory upgrade kit - Includes two 512MB SDRAM DIMM modules |
| A6114-69001 | 1024MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (2048MB kit is A6114A) |
| A6114A | 2048MB ECC DIMM high-density memory upgrade kit - Includes two (A6114-69001) 1024MB SDRAM DIMM modules |
| A6115A | 2048MB ECC high-density memory upgrade kit - Includes two (A6115-69002) 1024MB SDRAM DIMM modules |
| Hard Drive | |
| A5558A | 12GB/24GB Single-Ended SCSI-2 DDS-3 (DAT) tape drive - 5.25in form factor |
| A5802-69003 | 9GB hot-plug Ultra2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile (Seagate) |
| A5802A | 9GB hot-plug Ultra2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile |
| A5802AR | 9GB hot-plug Ultra2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile |
| A5803-69003 | 18GB hot-plug Ultra-2 SCSI hard drive module - 10,000 RPM, low profile (Seagate ST318404LC) |
| A5803A | 18GB hot-plug Ultra-2 SCSI hard drive module - 10,000 RPM, low profile |
| A5803AR | 18GB hot-plug Ultra-2 SCSI hard drive module - 10,000 RPM, low profile |
| A6091A | HP 73GB hot-plug Ultra2 SCSI hard drive - 10,000 RPM, low profile |
| A6091AR | HP 73GB hot-plug Ultra2 SCSI hard drive - 10,000 RPM, low profile |
| A6110-69003 | 36GB hot-plug Ultra-2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile (Seagate) |
| A6110A | 36GB hot-plug Ultra-2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile (Seagate) |
| A6110AR | 36GB hot-plug Ultra-2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile (Seagate) |
| RAID | |
| A5856A | NetRAID-4si four channel Ultra2 SCSI disk array controller - PCI board with two internal 68 Pin high density and four external 68 pin very high density connectors |
| SCSI | |
| A4800A | Single port PCI fast/wide differential (FWD) SCSI-2 adapter - Has one external high density 68 pin connector and one internal high density 68 pin connector - Single port PCI FWD High Voltage Differential SCSI-2 adapter - has one external High Density 68 p |
| A5149A | PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips |
| A5149AR | PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips |
| A5150A | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
| A5150AR | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
| A5159A | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system |
| Ethernet | |
| A3738A | 10base-T/100base-TX PCI LAN adapter - Has AUI, BNC, and RJ-45 connectors - LAN Adapter - 10/100base-TX PCI LAN adapter with one port, but with three connectors AUI, BNC, and RJ-45 |
| A4926A | LAN adapter - 1000base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A4929A | LAN adapter - 1000base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A5191-69211 | 10/100base-T LAN / 4 port Ultra2 LVD SCSI PC board - Has one external RJ-45 LAN port and one 68-pin Ultra2 LVD Very High Density SCSI port and two internal 68-pin Ultra2 LVD SCSI ports and one 50-pin Ultra SCSI2 port |
| A5230A | 100base-TX PCI LAN adapter with one RJ-45 port - LAN Adapter - 100base-TX PCI LAN adapter with one RJ-45 port |
| A5506B | 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al |
| A5838A | PCI 5.0v dual port 10base-T/100base-TX LAN and dual port Ultra2 Low Voltage Differential/Single-Ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-pin very high density connectors - Dual port 10/100base-T LAN and Dual port Ultra2 LV |
| Adapter | |
| A5191-69112 | PCI GSP - Provides virtual front panel functionality and remote management capabilities through a 25-PIN RS232 serial port or an RJ-45 10base-T LAN port - L-Class PCI GSP - Provides virtual front panel functionality and remote management capabilities thro |
| J3525A | Dual Port PSI Card for HP 3000/9000 - Two port X.25 PCI frame relay adapter card |
| J3526A | WAN adapter - High Performance 4-port PCI Synchronous Adapter X.25 frame relay card |
| Graphics | |
| 30-10119-02 | ATI RADEON 7500 graphics controller - 64MB DDR SDRAM memory, 350MHz RAMDAC |
| A6150-60001 | 2D PCI graphics card-Provides two USB ports |
| A6150A | PCI 2D graphics kit - Includes one 2D PCI graphics card and one PCI 2 port USB card |
| A6150B | PCI 2D graphics kit - Includes one 2D PCI graphics card and one PCI 2-port USB card |
| Fibre | |
| A5158A | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
| A5158AR | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
| Power | |
| A1353A | PowerTrust II-LR Uninterruptible Power Supply - 2.0KVA, 1400 watt, 120VAC - Includes 1 ext. battery pack, RS-232 cable, and power cord |
| A1354A | PowerTrust II-LR Uninterruptible Power Supply - 2.0KVA, 1400 watt, 230VAC - Includes 1 ext. battery pack, RS-232 cable, and power cord |
| A1356A | PowerTrust II-LR Uninterruptible Power Supply - 3.0KVA, 2100 watt, 240VAC - Includes 1 ext. battery pack, RS-232 cable, and power cord |
| A2998B | Powertrust Uninterruptible Power Supply (Rack Mount) - 3.0KVA, 3000 watt, 240VAC - Quartz Gray |
| A3589B | PowerTrust Uninterruptible Power Supply (Rack Mount) - 5.5KVA, 5500 watt, 240VAC (Quartz Gray) |
| A5527-69001 | Hot-swap redundant power supply - 100/240VAC input, 50/60Hz, autoswitching |
| A5527A | Hot-swap redundant power supply - 100/240VAC input, 50/60Hz, autoswitching |
| A6583A | PowerTrust II-MR Uninterruptible Power Supply - 4.5KVA, 4000 watt, 240VAC - Includes one battery pack, RS232 DB9/DB9 standard cable, rack kit, and manuals |
| Battery | |
| 1420-0866 | 240V battery pack - 25A, external - For PowerTrust II-MR 4000W, 6500W, and 8000W UPS |
| A1357A | 96V battery pack - External - For PowerTrust II-LR UPS |
| A6586A | 240V Battery pack - 25A, external - For PowerTrust II-MR 4000W UPS |
| DVD | |
| A5557A | Narrow Single-Ended SCSI-2 slot load DVD-ROM drive - 6X DVD-ROM read, 32X CD-ROM read (Pioneer DVD-303/304) - Has headphone jack and volume control |
| Tape | |
| C1537-69202 | 12GB/24GB Single-Ended SCSI-2 DDS-3 (DAT) tape drive - 5.25-inch form factor - (part of A3542A, A4249A) |
| Fan | |
| A5191-04002 | Tubeaxial fan assembly - Includes the fan and metal enclosure with finger guards - Used as a Hot-Swap chassis fan |
| A5191-04003 | 172mm I/O card cage `hot swap` fan |
| A5191-67006 | `Hot swap` fan for the power converter |
| Cable | |
| A5191-63001 | Console cable - Has one DB-25 (M) connector and three 20.3cm (8in) cables with DB-9 (M) connectors - From GSP board to local console, remote and UPS ports |
| A5191-63002 | Drive power cable - 4-pin (F) connector to 4-pin (F) connector - 8.5cm (3.3in) long - From DVD-ROM/DDS drive to drive/media backplane |
| A5191-63003 | Power cable - 10-pin (F) connector to 10-pin (F) connector - 11.4cm (4.5in) long - From PCI I/O backplane to drive/media backplane |
| A5191-63004 | Data cable - Has 10-pin (F) connectors - From PCI I/O backplane to disk/media backplane |
| A5191-63005 | SCSI ribbon cable - One 68-pin (M) connector on each end - 51.6cm (20.3in) long - SCSI bus-A - From four port SCSI card to drive/media backplane |
| A5191-63006 | SCSI ribbon cable - One 68-pin (M) connector on each end - 39.6cm (15.6in) long - SCSI bus-B - From 4-port SCSI card to drive/media backplane |
| A5191-63007 | Ultra SCSI ribbon cable - Two 50-pin (M) connectors - 29.5cm (11.6in) long - SCSI bus-RM - From 4-port SCSI card to drive/media backplane |
| A5191-63008 | SCSI ribbon cable with termination - Has two 50-pin (F) connectors - 9.7cm (3.8in) long - From DVD-ROM drive to disk/media backplane |
| A5191-63009 | Power cable assembly - Large 6-pin (F) connector to small 6-pin (F) connector - 8.3cm (3.3in) long - For the rear chassis fan |
| A5191-63010 | Power cable assembly - Large 6-pin (F) connector to small 6-pin (F) connector - 20.2cm (8.0in) long - For the front chassis fan |
| A5191-63011 | Ribbon cable - Has two 10-pin (F) connectors - 54cm (21.3in) long - From system board to display board |
| A5191-63013 | Drive power cable - Has two 4-pin (F) connectors - 13.5cm (5.3in) long - From DDS drive to disk/media backplane |
| A5191-63014 | SCSI ribbon cable with termination - Has two 50-pin (F) connectors - 17.5cm (6.9in) long - From DDS drive to disk/media |
| A5220-67003 | Narrow Single-Ended SCSI-2 slot load DVD-ROM drive - 6X DVD-ROM read, 32X CD-ROM read (Pioneer DVD-303/304) - Has headphone jack and volume control |
| A6144-63006 | Power harness kit - Includes two mounting screws and a PC board with a DB-25 (M) connector, a 4.1cm (1.6in) ribbon cable with a 20-pin (F) connector, and a 12.3cm (4.8in) cable with a 6-pin (F) connector |
| Cabinet | |
| A3639-00214 | Power supply bay cover with captive screws - For empty power supply bays |
| A5191-04013 | Front bezel assembly - Mounts on the front of the server - Requires bezel hardware kit |
| A5191-70010 | Bezel hardware kit - Used with new style (one piece) front bezel |
| Other | |
| A3639-04024 | PCI card separator/extractor with light pipe |
| A4983B | USB keyboard kit - Includes keyboard and three button mouse |
| A5191-60013 | Display board - Has on/off switch and five server status LEDs - Mounts to the upper front of the chassis |
| A5191-67104 | Disk/media backplane - Has power and SCSI connectors for removable media mass storage devices on one side and four SCA connectors for hot-plug hard drives on the other side |
| A5191-69105 | Power converter - Converts the input voltage 100/240V to power that can be used by the power supplies - Has three power cord input plugs |
| C2364A | Low voltage differential/single-ended SCSI terminator - Has 68-pin high density (M) connector with thumbscrews |
| C2370A | Low Voltage Differential (LVD)/Single-ended (SE) SCSI terminator - Has 68 pin very high density connector with thumbscrews |
| C2905A | High voltage differential SCSI terminator - Has 68 pin high density (M) connector with thumbscrews |
