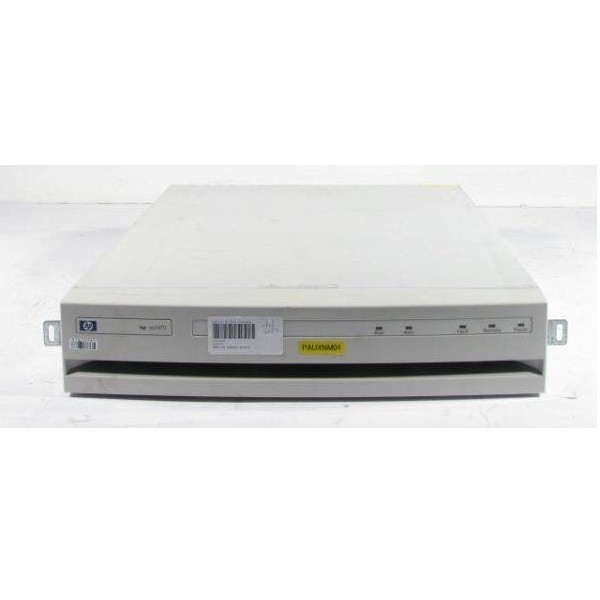

HP 9000 Server RP2450 A5570AR
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | HP 9000 Server RP2450 A5570AR | Status: | Stock |
|---|---|---|---|
| Area: | Global | Express: | DHL EMS FEDEX |
HP 9000 Server RP2450 A5570AR
component parts for the RP2450 A5570AR
| Part Number | Description |
| CPU | |
| A5571-69001 | HP PA-RISC processor - 440MHz PA-RISC 8600 with 1.5MB cache - Includes attached heat sink |
| A5571A | HP PA-RISC processor - 440MHz PA-RISC 8600 with 1.5MB cache - Includes attached heat sink |
| A6148-69001 | HP PA-RISC processor - 550MHz PA-RISC 8600 with 1.5MB cache - Includes attached heat sink |
| A6148A | HP PA-RISC processor - 550MHz PA-RISC 8600 with 1.5MB cache - Includes attached heat sink |
| Processor Board | |
| A5570-66003 | PCI I/O card backplane - Has four PCI slots, three slots on one side and one slot on the other side |
| A5570-69002 | A-Class Guardian Service Processor (GSP) board - Provides virtual front panel functionality and remote management capabilities |
| A5570-69316 | System processor board (Rev. B) - Has two processor sockets, eight DIMM slots, and dual Ultra SCSI channels |
| Memory | |
| A5572-69001 | 128MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (256MB kit is A5572A) |
| A5572A | 256MB ECC DIMM high-density memory upgrade kit - Includes two 128MB SDRAM DIMM modules |
| A5840-69101 | 256MB ECC high-density SDRAM DIMM memory module Board - Must be installed in pairs of equal size (512MB kit is A5840A) |
| A5840A | 512MB ECC DIMM high-density memory upgrade kit - Includes two 256MB SDRAM DIMM modules |
| A5841-69001 | 512MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (1024MB kit is A5841A) |
| A5841A | 1024MB ECC DIMM high-density memory upgrade kit - Includes two 512MB SDRAM DIMM modules |
| A6114-69001 | 1024MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (2048MB kit is A6114A) |
| A6114A | 2048MB ECC DIMM high-density memory upgrade kit - Includes two (A6114-69001) 1024MB SDRAM DIMM modules |
| Hard Drive | |
| A5505-69003 | 9GB hot-plug Ultra SCSI Low Voltage Differential (LVD) SCA hard drive - 7,200 RPM, low profile (Seagate ST39102LC) |
| A5531-69003 | 18GB hot-plug Ultra SCSI Low Voltage Differential (LVD) SCA hard drive - 10,000 RPM, low profile (Seagate ST318203LC) |
| A5573A | 9GB hot-plug Ultra SCSI Low Voltage Differential (LVD) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A5573AR | 9GB hot-plug Ultra SCSI Low Voltage Differential (LVD) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A5574A | 18GB hot-plug Ultra SCSI Low Voltage Differential (LVD) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A5574AR | 18GB hot-plug Ultra SCSI Low Voltage Differential (LVD) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6089-69001 | 36GB hot-plug Ultra-2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile (Seagate ST336704LC) |
| A6145A | 36GB hot-plug Ultra SCSI Low Voltage Differential (LVD) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6145AR | 36GB hot-plug Ultra SCSI Low Voltage Differential (LVD) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6739-69002 | 18GB hot-plug Ultra160 Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6740-69002 | 36GB hot-plug Ultra160 Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6741A | 18GB hot-plug Ultra160 Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6741AR | 18GB hot-plug Ultra160 Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6742A | 36GB hot-plug Ultra160 Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6742AR | 36GB hot-plug Ultra160 Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6804-69002 | 73GB hot-plug Ultra2 Wide SCSI Low Voltage Differential (LVD) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6804A | 73GB hot-plug Ultra2 Wide SCSI Low Voltage Differential (LVD) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A6804AR | 73GB hot-plug Ultra2 Wide SCSI Low Voltage Differential (LVD) hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| Backplane Board | |
| A6889-67004 | Hot-plug SCSI hard drive backplane |
| RAID | |
| A5856A | NetRAID-4si four channel Ultra2 SCSI disk array controller - PCI board with two internal 68 Pin high density and four external 68 pin very high density connectors |
| SCSI | |
| A4800A | Single port PCI fast/wide differential (FWD) SCSI-2 adapter - Has one external high density 68 pin connector and one internal high density 68 pin connector - Single port PCI FWD High Voltage Differential SCSI-2 adapter - has one external High Density 68 p |
| A5149A | PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips |
| A5149AR | PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips |
| A5150A | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
| A5150AR | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
| A5159A | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system |
| Ethernet | |
| A4926A | LAN adapter - 1000base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A4929A | LAN adapter - 1000base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A5230A | 100base-TX PCI LAN adapter with one RJ-45 port - LAN Adapter - 100base-TX PCI LAN adapter with one RJ-45 port |
| A5506B | 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al |
| A5838A | PCI 5.0v dual port 10base-T/100base-TX LAN and dual port Ultra2 Low Voltage Differential/Single-Ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-pin very high density connectors - Dual port 10/100base-T LAN and Dual port Ultra2 LV |
| Adapter | |
| A5483A | PCI Asynchronous Transfer Mode (ATM) 622Mbps Multi-mode Fiber Adapter |
| A5513A | PCI Asynchronous Transfer Mode (ATM) 155Mbps Multi-mode Fiber Adapter |
| A5858-70001 | Secure Web Console PCI card |
| A5858A | HP Secure Web Console PCI card |
| J3525A | Dual Port PSI Card for HP 3000/9000 - Two port X.25 PCI frame relay adapter card |
| Fibre | |
| A5158A | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
| A5158AR | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
| A6795A | 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors |
| A6795AR | 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors |
| Power | |
| A5570-69009 | Power supply - 100-240VAC, 600Watt, 2.6-6.0A, 50-60Hz |
| VRM | |
| 0950-3821 | Master DC-DC converter - One required for each processor |
| 0950-3822 | Slave DC-DC converter - At least one required for each processor |
| DVD | |
| C4314-69002 | Ultra/Single-Ended SCSI external DVD-ROM drive - 6x DVD-ROM read, 32x CD-ROM read - Has headphone jack and volume control |
| C4314A | 6x-max read DVD, 32x-max read CD-ROM external Ultra SCSI-2 slot load DVD-ROM drive (Pioneer DVD-303 slot load drive) |
| Tape | |
| C6364A | 12-24GB DDS-3 external Single-Ended SCSI-2 DAT tape drive |
| C6364AR | 12-24GB DDS-3 external Single-Ended SCSI-2 DAT tape drive |
| Cable | |
| A5191-63001 | Console cable - Has one DB-25 (M) connector and three 20.3cm (8in) cables with DB-9 (M) connectors - From GSP board to local console, remote and UPS ports |
| A5570-63001 | Ultra SCSI hard drive ribbon cable - Two connectors from the hard drive backplane to the system board - Includes two cables |
| C2908A | Single-ended SCSI-2 interface cable with thumbscrews on both ends - 50 pin high density (M) to 50 pin high density (M) - 1.0m (3.3ft) long |
| C2955A | Single-ended SCSI-2 interface cable with thumbscrews on both ends - 50 pin high density (M) to 50 pin high density (M) - 0.5m (1.6ft) long |
| C2957A | Single-ended SCSI-2 interface cable with thumbscrews on both ends - 50 pin high density (M) to 50 pin high density (M) - 2.0m (6.6ft) long |
| C2978A | SCSI interface cable with thumbscrews on both ends - 68 pin high density (M) to 68 pin high density (M) - 90 Ohms - 0.5m (1.6ft) long |
| C2978B | SCSI interface cable with thumbscrews on both ends - 68-pin high density (M) to 68-pin high density (M) - 128 Ohms - 0.5m (1.6ft) long |
| C2979A | SCSI interface cable with thumbscrews on both ends - 68 pin high density (M) to 68 pin high density (M) - 90 Ohms - 1.5m (4.9ft) long |
| C2979B | SCSI interface cable with thumbscrews on both ends - 68 pin high density (M) to 68 pin high density (M) - 128 Ohms - 1.5m (4.9ft) long |
| Cabinet | |
| A5570-00001 | Power supply shroud with fans and LEDs |
| A5570-62003 | PCI I/O card cage chassis assembly - metal structure shielding the I/O boards |
| A5570-62006 | Front bezel (plastic) |
| A5570-67006 | Chassis assembly - Includes chassis box and top cover |
| A5570-67007 | Chassis top cover |
| A5570-84001 | Nameplate - A500 series computer logo - Mounts on the front bezel |
| Other | |
| 0960-1074 | 56K support modem |
| A5570-00002 | Hard drive tray - Low profile - Includes screws - Hot-plug hard drive tray - Low profile - Includes screws and grommets |
| A5570-62014 | Processor terminator module |
| C2904A | Single-ended SCSI-2 active terminator - Has 50 pin high density (M) connector with thumbscrews |
| C2972A | Ultra wide single-ended SCSI-2 active terminator - Has 68 pin high density (M) connector with thumbscrews |
