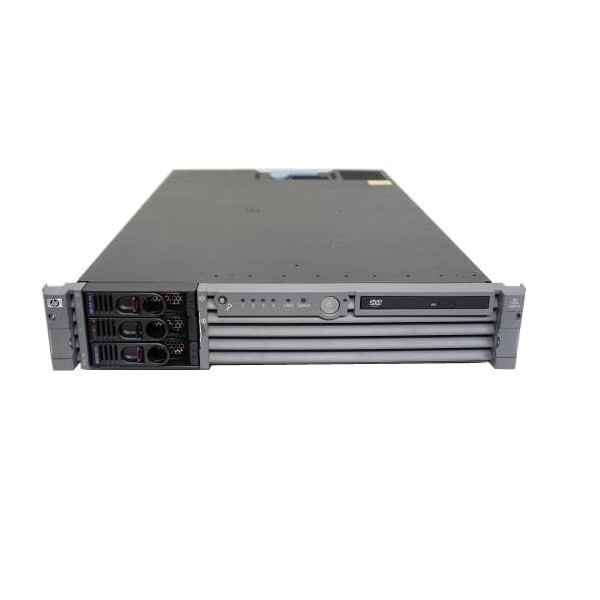

HP 9000 Server RP3410-1 One Way base A7136B
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | HP 9000 Server RP3410-1 One Way Base A7136B | Status: | Stock |
|---|---|---|---|
| Area: | Global | Express: | DHL EMS FEDEX |
HP 9000 Server RP3410-1 One Way base A7136B
component parts for the RP3410 A7136B
| Part Number | Description |
| CPU | |
| A7135AX/A7135-69102 | Processor - 1.0GHz, PA-8800 Central processing unitProcessor - 1.0GHz, PA-8800 Central processing unit |
| A7138-69002 | HP PA-RISC processor - 800MHz PA-RISC 8800 dual core with 1.5MB cache - Includes attached heat sink with fan |
| A7138A | HP PA-RISC processor upgrade kit - Includes one 800MHz PA-RISC 8800 dual core processor and attached heat sink with fan |
| A7139-69002 | HP PA-RISC processor - 900MHz PA-RISC 8800 dual core with 3MB cache - Includes attached heat sink with fan |
| AB354A | HP PA-RISC processor upgrade kit - Includes one 1.0GHz PA-RISC 8800 dual core processor and attached heat sink with fan |
| Processor Board | |
| A6961-67005 | Midplane riser board - Has slots for the processor board, memory board, and I/O base board |
| A6961-67007 | Processor extender board - Has two processor sockets on one side and two on the other side |
| A6961-67009 | QuickFind diagnostic board - Includes the plastic cover and label |
| A6961-67015 | Power distrubution board - Has connectors for two hot-swap power supplies - Attached to the rear power supply cage underneath the hot-swap power supply fan unit |
| A6961-67105 | Midplane riser board - Has slots for the processor board, memory board, and I/O base board |
| A6961-67106 | Printed Circuit Assembly (PCA) - Small Computer Systems Interface (SCSI) duplex board |
| A6961-67107 | Processor extender board - Has two processor sockets on one side and two on the other side |
| A6961-67115 | Power distrubution board - Has connectors for two hot-swap power supplies |
| A6961-67206 | Printed Circuit Assembly (PCA) - Small Computer Systems Interface (SCSI) duplex board |
| A6961-67207 | Replaced: A6961-67207 Processor extender board - Has two processor sockets on one side and two on the other side |
| A6961-69501 | I/O baseboard - Has eight 64-bit PCI slots - Includes VRMs |
| A6961-69511/A6961-67411 | I/O baseboard - Has eight 64-bit PCI slots - Includes VRMs |
| A6961-69804/A6961-67804 | Memory board - 16-slot memory carrier |
| A7136-69001/A7136-67001 | SPS-Assy StormPeak Sys. Brd |
| A7136-69101/A7136-67101 | System processor boardSystem processor board |
| A9739-69007 | Memory board PCA (32-slot) - For firmware versions greater than 1.13 |
| A9739-69008/A9739-67008 | Memory board PCA (32-slot) - For firmware versions greater than 1.13 |
| Memory | |
| A6835-69001 | 2.0GB, 266MHz, PC2100, registered ECC, DDR SDRAM, DIMM memory module |
| A6967AX | 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module |
| A6969AX/A6969-69001 | 1.0GB, 266MHz, PC2100, ECC DDR-SDRAM DIMM memory module |
| A9774A | HP rp3400 4GB PC2100 DDR-SDRAM Quad Memory (four 1GB) |
| Hard Drive | |
| A6981AR | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile |
| AB420-69001/AB420-67001 | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AB421-69001/AB421-67001 | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon black and port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AB422-69001/AB422-67001 | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| Backplane Board | |
| A6961-67024 | SCSI backplane board - Has two 80-pin SCA hot-swap drive sockets - Includes the management board and simplex board |
| A6961-67205 | SCSI backplane board - Has two 80-pin SCA hot-swap drive sockets - Includes the management board and simplex board |
| AB587-60005 | SCSI backplane board - Has three connectors for hot-swap hard drives |
| SCSI | |
| A6828A | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system |
| A6828AR | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system |
| A6829A/A6829-60101 | Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| A6829AR | Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| Ethernet | |
| A5506B | 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al |
| A5838-69101 | Dual port 10base-T/100base-TX LAN and dual port Ultra2 low voltage differential/single-ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-PIN very high density connectors |
| A6825-67101/A6825-67001/A6825-60001/A6825-69101 | 1000base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one 64-bit PCI slot |
| A6847A | 1000base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system |
| AB290-69002/AB290-67002 | Dual port 10base-T/100base-TX LAN and dual port Ultra2 low voltage differential/single-ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-PIN very high density connectors |
| AB545-60001 | 1000base-TX LAN four port host adapter board - Supports all PCI bus configurations - Has four RJ-45 connectors - Requires one PCI slot - For HP-UX operating system |
| Graphics | |
| 30-10119-02 | ATI RADEON 7500 graphics controller - 64MB DDR SDRAM memory, 350MHz RAMDAC |
| A6150-60001 | 2D PCI graphics card-Provides two USB ports |
| Power | |
| 0950-4530 | Processor power supply (or module) - DC to DC converter module with power supply cable (12V DC in, 1.5V DC at 100A nominal |
| 0950-4621 | Hot-swap redundant power supply - 650W |
| A6961-67225 | Power supply - 700W,48V |
| DVD | |
| A7231-69024 | Slimline DVD-ROM/CD-RW combination drive (Carbon Black) - 12X CD-R write, 8X CD-RW re-write, 24X read CD-ROM, 8X read DVD-ROM |
| A9919-67001/A7231-62012 | Slimline DVD-ROM drive (Carbon Black) - 8X read DVD-ROM, 24X read CD-ROM |
| Fan | |
| A7231-04004 | Fan cage assembly (metal) - Front half of the processor airflow system |
| A7231-04014 | Super 80mm tubeaxial fan |
| A7231-04015 | Thin 80mm fan - For use in tower configuration |
| A7231-04017 | Standard 80mm fan |
| A7231-04034 | Main airflow guide (plastic) |
| A7231-04049 | Memory airflow guide (plastic) |
| A7231-04059 | 80mm dual fan |
| A7231-04060 | Thin 80mm fan |
| AB331-04006 | CPU/Chassis fan |
| Cable | |
| 8121-0808 | Audio cable assembly - For CD-ROM, CD-RW, or DVD-ROM - 4-pin (F) connector to 4-pin (F) connector - 44.8cm (17.6 inches) long - Connects between the CD-RW or DVD-ROM drive and the system processor board |
| A6144-63001/A6144-63007/A6144-63019 | Management processor M-cable |
| A6961-63017 | Internal SCSI cable |
| A6961-63018 | SCSI backplane board to midplane board cable |
| A7231-04018 | Power supply interface cable (module) assembly - Includes the dual power supply interface connector, the low voltage cables, and the two internal power cables terminated with line filter/power recptacle assemblies |
| A7231-04048 | Power supply interface cable (module) assembly - Includes the dual power supply interface connector, the low voltage cables, and the two internal power cables terminated with line filter/power recptacle assemblies |
| A7231-63002 | Data cable - For IDE CD-ROM/DVD drive - Connects between the CD-ROM/DVD drive and the system processor board |
| A7231-63026 | Data cable - For IDE CD-ROM/DVD drive |
| A7231-63028 | Hard drive power cable |
| A7231-63029 | Y-cable assembly for super-80mm fan - 6-wire (three per connector) fan cable |
| A7231-63030 | Y-cable assembly for 80mm fan - 12-wire (three per connector) fan cable |
| A7231-63032 | Flex cable - For the management processor card |
| A7231-63038 | SCSI cable A-channel - Has one connector at each end |
| A7231-63039 | SCSI cable B-channel - Has one connector at each end |
| J3525-60102 | X.21 interface cable |
| J3525-60103 | V.35 interface cable |
| J3525-60105 | RS-232 interface cable |
| J3525-60106 | RS-499 interface cable |
| J3525-60107 | X.21 interface cable |
| J3525-60108 | V.35 interface cable |
| J3525-60109 | RS-530 interface cable |
| Cabinet | |
| A7231-00072 | ECI cover plate - Gray metal plate approximately 1.0-inches wide by 6.75-inches long |
| A7231-04026 | Deskside front bezel assembly (Flint Gray) |
| A7231-04063 | Pedestal - For supporting the chassis in a deskside/tower configuration |
| A7231-04064 | Side cover (metallic alloy) - For deskside configuration RoHS: Modified |
| A7231-04066 | Right side bezel (Graphite) - For rack mount configuration |
| A7231-04068 | Left side bezel with rack latch - For rack mount configuration |
| A7231-04071 | Main cover (Carbon Black) - metal cover with blue-colored release handle |
| A7231-40021 | Deskside top cover |
| AB297-2104A | Cover kit (unpainted) - Includes top cover and two side covers |
| Other | |
| 0515-2721 | Pan head screw with square cone washer - M3.0 X 0.5, 6.0mm long, recessed torx T15 with slot |
| 395737-001 | USB 3-button scrolling mouse (Carbon Black) - Has 2.9m (10ft) cable with type (A) USB connector |
| A6198-60003 | Hot-swap hard drive slot filler panel (Carbon Black) |
| A6198-67002 | Filler panel - Used to cover an empty hard drive slot |
| A6940A | Pedestal configuration kit - Includes pedestal, front bezel, top cover, side cover, and nameplate - For converting the rack mount server into a deskside pedestal configuration |
| A6961-67113 | DVD-ROM drive I/O board - Has slimline DVD-ROM drive connector and cable connector for DVD I/O board to midplane board cable |
| A6961-67213 | DVD-ROM drive I/O board - Has slimline DVD-ROM drive connector and cable connector for DVD I/O board to midplane |
| A7231-04072 | PCI/AGP card cage - Includes the metal frame and cover (PC board NOT included) |
| A7231-40025 | Deskside nameplate (Flint Gray) |
| A7231-40026 | Slimline optical drive bay filler p |
