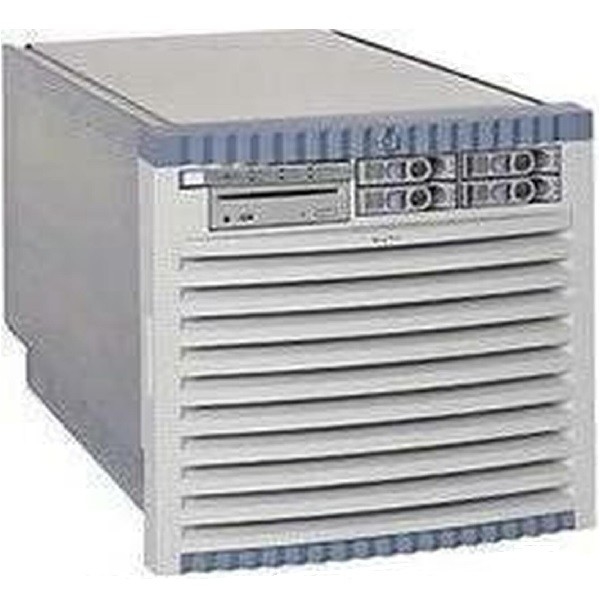

HP 9000 Server RP7400 PA-RISC Processor A3639A
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | HP 9000 Server RP7400 PA-RISC Processor A3639A | Status: | Stock |
|---|---|---|---|
| Area: | Global | Express: | DHL EMS FEDEX |
HP 9000 Server RP7400 PA-RISC Processor A3639A
component parts for the RP7400 A3639A
| Part Number | Description |
| CPU | |
| A3639-69012 | PA-RISC 8500/8600 processor support module - Provides power for two processors - One required for every two processors |
| A4883-69101 | HP PA-RISC 8500 processor - 360MHz with 1.5MB cache - Includes attached heat sink |
| A4883A | HP PA-RISC processor upgrade kit - Includes one 360MHz PA-RISC 8500 processor with 1.5MB cache and attached heat sink |
| A5500-69101 | HP PA-RISC 8500 processor - 440MHz with 1.5MB cache - Includes attached heat sink |
| A5500A | HP PA-RISC processor upgrade kit - Includes one 440MHz PA-RISC 8500 processor with 1.5MB cache and attached heat sink |
| A5866-69001 | HP PA-RISC 8600 processor - 550MHz with 1.5MB cache - Includes attached heat sink |
| A5866A | HP PA-RISC processor upgrade kit - Includes one processor 550MHz PA-RISC 8600 with 1.5MB cache and attached heat sink |
| Processor Board | |
| A3639-69201 | Core I/O board - Has one ultra2 SCSI LVD and 10/100base-T RJ-45 port and guardian service processor that includes 9-pin RS-232 remote and local console ports and 10base-T LAN port - Core I/O board - Mounts horizontally in the rear of the chassis - Has one |
| A3639-69208 | Power monitor - Attaches to the system board |
| A3639-69314 | Left PCI I/O backplane board - Has six PCI slots - N4000 left PCI I/O backplane board - Has six PCI slots - Mounts vertically in the left side of chassis |
| A3639-69315 | Right PCI I/O backplane board - Has six PCI slots - N4000 right PCI I/O backplane board - Has six PCI slots - Mounts vertically in the right side of chassis |
| A3639-69520 | System board - For 1-8 way PA-RISC 8600 processor configuration - N4000 System board - For 1-8 way PA-RISC 8600 processor configuration - Mounts horizontally in the center of the chassis |
| A3639-69806 | System board - For 1-8 way PA-RISC 8500 processor configuration - N4000 System board - For 1-8 way PA-RISC 8500 processor configuration - Mounts horizontally in the center of the chassis |
| Memory | |
| A3639-00192 | Memory clip - Retains the memory (DIMM) module |
| A3639-69102 | Memory carrier - Has eight DIMM slots - N4000 memory carrier - Plugs into the system processor board |
| A3763-69201 | 256MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (512MB kit is A3763A) |
| A3763A | 512MB ECC DIMM high-density memory upgrade kit - Includes two 256MB SDRAM DIMM modules |
| A4882A | Memory carrier - Adds an additional eight DIMM slots - N4000 memory carrier - Attaches to the system processor board |
| A4923-69101 | 512MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (1024MB kit is A4923A) |
| A4923A | 1024MB ECC DIMM high-density memory upgrade kit - Includes two 512MB SDRAM DIMM modules |
| A5864-69002 | 1024MB ECC high-density SDRAM DIMM memory module - Must be installed in pairs of equal size (2048MB kit is A5864A) |
| A5864A | 2048MB ECC high-density SDRAM memory upgrade kit - Includes two 1024MB SDRAM DIMM modules |
| Hard Drive | |
| A5505-69003 | 9GB hot-plug Ultra SCSI Low Voltage Differential (LVD) SCA hard drive - 7,200 RPM, low profile (Seagate ST39102LC) |
| A5505A | 9GB hot-plug Ultra SCSI Low Voltage Differential (LVD) SCA hard drive - 7,200 RPM, low profile (Seagate ST39102LC) |
| A5505AR | 9GB hot-plug Ultra SCSI Low Voltage Differential (LVD) SCA hard drive - 7,200 RPM, low profile (Seagate ST39102LC) |
| A5531-69003 | 18GB hot-plug Ultra SCSI Low Voltage Differential (LVD) SCA hard drive - 10,000 RPM, low profile (Seagate ST318203LC) |
| A5531A | 18GB hot-plug Ultra SCSI Low Voltage Differential (LVD) SCA hard drive - 10,000 RPM, low profile (Seagate ST318203LC) |
| A5531AR | 18GB hot-plug Ultra SCSI Low Voltage Differential (LVD) SCA hard drive - 10,000 RPM, low profile (Seagate ST318203LC) |
| A6089-69001 | 36GB hot-plug Ultra-2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile (Seagate ST336704LC) |
| A6089A | 36GB hot-plug Ultra-2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile (Seagate ST336704LC) |
| A6089AR | 36GB hot-plug Ultra-2 Low Voltage Differential (LVD) SCSI SCA hard drive - 10,000 RPM, low profile (Seagate ST336704LC) |
| Backplane Board | |
| A3639-69113 | Disk/media backplane - Has power and SCSI connectors for removable media mass storage devices on one side and two SCA connectors for hot-plug hard drives on the other side |
| RAID | |
| A5856A | NetRAID-4si four channel Ultra2 SCSI disk array controller - PCI board with two internal 68 Pin high density and four external 68 pin very high density connectors |
| SCSI | |
| A4800A | Single port PCI fast/wide differential (FWD) SCSI-2 adapter - Has one external high density 68 pin connector and one internal high density 68 pin connector - Single port PCI FWD High Voltage Differential SCSI-2 adapter - has one external High Density 68 p |
| A5149A | PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips |
| A5149AR | PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips |
| A5150A | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
| A5150AR | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
| A5159A | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system |
| Ethernet | |
| A3738A | 10base-T/100base-TX PCI LAN adapter - Has AUI, BNC, and RJ-45 connectors - LAN Adapter - 10/100base-TX PCI LAN adapter with one port, but with three connectors AUI, BNC, and RJ-45 |
| A4926A | LAN adapter - 1000base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A4929A | LAN adapter - 1000base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
| A5230A | 100base-TX PCI LAN adapter with one RJ-45 port - LAN Adapter - 100base-TX PCI LAN adapter with one RJ-45 port |
| A5506B | 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al |
| A5838A | PCI 5.0v dual port 10base-T/100base-TX LAN and dual port Ultra2 Low Voltage Differential/Single-Ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-pin very high density connectors - Dual port 10/100base-T LAN and Dual port Ultra2 LV |
| Adapter | |
| J3525A | Dual Port PSI Card for HP 3000/9000 - Two port X.25 PCI frame relay adapter card |
| J3526A | WAN adapter - High Performance 4-port PCI Synchronous Adapter X.25 frame relay card |
| Fibre | |
| A5158A | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
| A5158AR | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
| Power | |
| A2998B | Powertrust Uninterruptible Power Supply (Rack Mount) - 3.0KVA, 3000 watt, 240VAC - Quartz Gray |
| A3589B | PowerTrust Uninterruptible Power Supply (Rack Mount) - 5.5KVA, 5500 watt, 240VAC (Quartz Gray) |
| A3639-69217 | Hot-swap power supply - 200/240VAC input, 50/60Hz |
| A5171A | Hot-swap redundant power supply - 200/240VAC input, 50/60Hz |
| A6583A | PowerTrust II-MR Uninterruptible Power Supply - 4.5KVA, 4000 watt, 240VAC - Includes one battery pack, RS232 DB9/DB9 standard cable, rack kit, and manuals |
| A6584A | PowerTrust II-MR Uninterruptible Power Supply - 9.0KVA, 6500 watt, 240VAC - Includes one battery pack set with 2 batteries, RS232 DB9/DB9 standard cable, rack kit, and manuals |
| E7674-63003/E7674-63001 | PDU POWER DISTR UNIT |
| Battery | |
| 1420-0866 | 240V battery pack - 25A, external - For PowerTrust II-MR 4000W, 6500W, and 8000W UPS |
| A6586A | 240V Battery pack - 25A, external - For PowerTrust II-MR 4000W UPS |
| A6587A | External battery pack kit - Includes two batteries rated at 240V, 25A each |
| Fan | |
| A3639-04016 | Fan assembly - Mounts in the center of the chassis |
| A3639-04017 | Fan assembly - Mounts in the rear of the chassis |
| A3639-04018 | Fan assembly - Mounts in the front of the chassis |
| Rack | |
| A3639-04028 | Rack mount outer rail, 88.9cm (35in) long |
| A5170A | Rack mount kit - For mounting an N-class server in a 1.26M, 1.6M, or 1.96M Rack System/E cabinet |
| Cable | |
| 8120-3996 | Power cord (Black) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 220V in the United States and Canada) |
| A3639-63006 | Ribbon cable kit - Includes an RFI shield, a DB-15 (M) to DB-15 (F) adapter, and a 53.3cm (21in) ribbon cable with a 16-pin (F) connector on one end and a DB-15 (F) connector on the other end - Front panel wiring harness |
| A3639-63007 | Front fan wiring harness - 12-pin (F) connector to both a 22.1cm (8.7in) cable marked `Fan 0` with a 6-pin (F) connector and a 28.6cm (11.3in) cable marked `Fan 1` with a 6-pin (F) connector |
| A3639-63008 | Rear fan wiring harness - 12-pin (F) connector to both a 20.8cm (8.2in) cable with a 6-pin (F) connector and a 51.3cm (20.2in) cable with a 6-pin (F) connector |
| A3639-63009 | Center fan wiring harness |
| A3639-67021 | Internal AC wiring kit - Terminal block - Three C13 (F) to spade lug (M) adapters - Three 29cm (11.5 inches) cables with C14 (M) connector, two spade lugs (F), and ring terminal - Three 29cm (11.5 inches) cables with ring terminal and five spade lugs (F) |
| Cabinet | |
| A3639-00214 | Power supply bay cover with captive screws - For empty power supply bays |
| A3639-04010 | N-CLASS system chassis |
| A4900A | Rack System/E25 cabinet - 1.25m 19in 25U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, leveling feet |
| A4900AR | Rack System/E25 cabinet - 1.25m 19in 25U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, leveling feet |
| A4901A | Rack System/E33 cabinet - 1.6m 19in 33U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, and leveling feet |
| A4901AR | Rack System/E33 cabinet - 1.6m 19in 33U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, and leveling feet |
| A4902A | Rack System/E41 cabinet - 1.95m 19in 41U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, leveling feet |
| A4902AR | Rack System/E41 cabinet - 1.95m 19in 41U rack cabinet - Has vented top, vented rear door, side cover panels, front/back anti-tip foot, castors, leveling feet |
| Other | |
| A3639-00101 | Front air baffle |
| A3639-00102 | Rear air baffle |
| A3639-00103 | Center support brace - Mounts in the middle of the system board section of the chassis |
| A3639-00104 | Hot-swap hard drive tray - metal tray for mounting 3.5-inch internal hot-swap hard disk drives |
| A3639-00141 | Top front chassis cover |
| A3639-00142 | Top back chassis cover |
| A3639-00149 | Memory expansion board guide |
| A3639-04013 | Left/right PCI I/O access cover |
| A3639-04023 | Front bezel - Covers the front of the server |
| A3639-04030 | Left side front bezel mounting bracket |
| A3639-04031 | Right side front bezel mounting bracket |
| A3639-40024 | Processor socket dust cover - Covers an empty processor socket |
| A3639-60018 | Front display panel - Has status LED`S and power switch |
| A3641-00014 | Heat sink thermal interface |
| A5168A | N-class processor support module - One required for every two processors |
