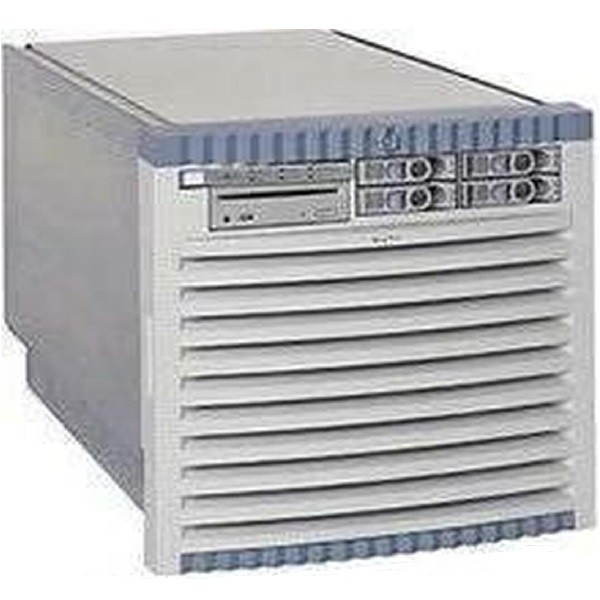

HP 9000 Server RP7410 A6752A

HP 9000 Server RP7410 A6752A

large.img.alt
small.img.alt

Large Image :  HP 9000 Server RP7410 A6752A Get Best Price

Product Details:
Place of Origin: USA
Brand Name: HP
Certification: HP Certificated
Model Number: HP 9000 Server RP7410 A6752A
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Contact us
Packaging Details: Sealed Retail Box
Delivery Time: 1-2 Days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000PCS/Month
Detailed Product Description
Name: HP 9000 Server RP7410 A6752A Status: Stock
Area: Global Express: DHL EMS FEDEX

HP 9000 Server RP7410 A6752A


component parts for the RP7410 A6752A

Part Number Description
CPU
A6435-69001 HP PA-RISC processor - 875MHz PA-RISC 8700 with 2.25MB cache - Includes attached heat sink and processor socket
A6443-69001 HP PA-RISC processor - 650MHz PA-RISC 8700 with 2.25MB cache - Includes attached heat sink and processor socket
A6443A HP PA-RISC processor upgrade - Includes two 650MHz PA-RISC 8700 processors with 2.25MB cache, attached heat sink, and processor socket
A6444-69001 HP PA-RISC processor - 750MHz PA-RISC 8700 with 2.25MB cache - Includes attached heat sink and processor socket
A6444A HP PA-RISC processor upgrade - Includes two 750MHz PA-RISC 8700 processors with 2.25MB cache, attached heat sink, and processor socket
Processor Board
A6094-69103 Cell board/PDH riser card assembly - Cell board mounted on metal tray, has four processor sockets and 16 DIMM slots
A6094A Processor and memory cell board assembly
A6752-69201/AB592B System backplane - Has slots for cell boards and core I/O boards and connectors for system cables - Mounts vertically on the left side of the system
A6793-69001 Core I/O interface board - Hot-swap I/O board
A6793A Core I/O interface board - Has one Ultra3 SCSI port, one 10/100/1000baseT LAN port, web console connector, and three RS-232 serial ports
Memory
A5198-69101 512MB high-density SyncDRAM DIMM memory
A6097A 2GB high-density SyncDRAM DIMM memory upgrade (set of four 512MB DIMMs)
A6098-69101 1GB high-density SDRAM DIMM (single DIMM)
A6098A 4GB high-density SyncDRAM DIMM (Set of four 1GB DIMMs)
A6802-69101 256MB high-density SyncDRAM DIMM (single DIMM)
A6802A 1GB high-density SyncDRAM DIMM (Set of four 250MB DIMMs)
Hard Drive
A6537-69003 18GB hot-swap Ultra160 Low Voltage Differential (LVD) SCSI hard drive module - 10,000 RPM, low profile
A6539-69002 73GB hot-swap Ultra160 Low Voltage Differential (LVD) SCSI hard drive module - 10,000 RPM, low profile
A6541-69002 36GB hot-swap Ultra160 Low Voltage Differential (LVD) SCSI hard drive module - 15,000 RPM, low profile
A6723A 18GB Hot-swap Low Voltage Differential Ultra-3 SCSI disk module - 10000 RPM, low profile
A6725A 73GB hot-swap Low Voltage Differential Ultra3 SCSI disk module - 10000 RPM, low profile
A6831A 36GB hot-swap Ultra160 Low Voltage Differential SCSI hard drive module - 15,000 RPM, low profile
Backplane Board
A6752-67044 Mass storage backplane - Has four SCA SCSI connectors for hot-swap drives - Mounts in the back of the hard drive cage
RAID
A5856A NetRAID-4si four channel Ultra2 SCSI disk array controller - PCI board with two internal 68 Pin high density and four external 68 pin very high density connectors
SCSI
A4800A Single port PCI fast/wide differential (FWD) SCSI-2 adapter - Has one external high density 68 pin connector and one internal high density 68 pin connector - Single port PCI FWD High Voltage Differential SCSI-2 adapter - has one external High Density 68 p
A5149A PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips
A5149AR PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips
A5150A Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors
A5150AR Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors
A5159A Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system
Ethernet
A3738A 10base-T/100base-TX PCI LAN adapter - Has AUI, BNC, and RJ-45 connectors - LAN Adapter - 10/100base-TX PCI LAN adapter with one port, but with three connectors AUI, BNC, and RJ-45
A4926A LAN adapter - 1000base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations
A4929A LAN adapter - 1000base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations
A5230A 100base-TX PCI LAN adapter with one RJ-45 port - LAN Adapter - 100base-TX PCI LAN adapter with one RJ-45 port
A5506B 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al
A5838A PCI 5.0v dual port 10base-T/100base-TX LAN and dual port Ultra2 Low Voltage Differential/Single-Ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-pin very high density connectors - Dual port 10/100base-T LAN and Dual port Ultra2 LV
Adapter
A5483A PCI Asynchronous Transfer Mode (ATM) 622Mbps Multi-mode Fiber Adapter
A5486A HP SpeedCard - PCI accelerator board for public key cryptography
A5513A PCI Asynchronous Transfer Mode (ATM) 155Mbps Multi-mode Fiber Adapter
A5515A PCI Asynchronous Transfer Mode (ATM) 155Mbps UTP5 Adapter with MMF connectors
A6748A HP 8-port MUX PCI Multiplexer interface board - Speeds up to 230,400 bps per port, 33MHz bus speed - Occupies one PCI slot - For HP-UX operating system
A6749A HP 64-port MUX PCI Multiplexer interface board
J3525A Dual Port PSI Card for HP 3000/9000 - Two port X.25 PCI frame relay adapter card
J3526A WAN adapter - High Performance 4-port PCI Synchronous Adapter X.25 frame relay card
Fibre
A5158A 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors
A5158AR 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors
A6092A HyperFabric PCI 4X fiber adapter interface
A6386A HyperFabric2 PCI 4X fiber adapter interface and switch - For HP-UX operating system
A6795A 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors
A6795AR 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors
Power
0950-4352 48V DC to DC voltage converter
0957-2187 PCI power supply module - Hot-swap power module for the PCI backplane
A6584A PowerTrust II-MR Uninterruptible Power Supply - 9.0KVA, 6500 watt, 240VAC - Includes one battery pack set with 2 batteries, RS232 DB9/DB9 standard cable, rack kit, and manuals
A6585A PowerTrust II-MR Uninterruptible Power Supply - 12.0KVA, 8000 watt, 240VAC - Includes one battery pack set with 2 batteries, RS232 DB9/DB9 standard cable, rack kit, and manuals
A6752-69044/0950-4611 Hot-swap power supply (1776W)
A6752-69213 AC power supply - Hot-swap redundant power supply module
DVD
A6180A 6x DVD-ROM read, 32x CD-ROM read Single-Ended SCSI-2 slot load DVD-ROM drive - Has headphone jack and volume control - (Pioneer DVD-303/304)
Tape
A6182A DAT40I - 20/40GB DDS-4 internal tape drive
Fan
A6752-04071 Smart fan assembly - For hot-swap PCI card cage (PCI C/C)
A6752-67129/A6752-67046/A6752-67029 Smart fan - Front/rear hot-swap, assembly
Rack
A6434-04046 Rack slide rail assembly (right
A6752-67011 CD/DVD-ROM drive mounting rail
J1530A Field rack mount kit for rpXXXX series servers
Cable
8120-6895 Power cord (Black) - 15 AWG, 4.5m (14.8ft) long - Has a stripped end for power input and straight C19 (F) receptacle for power output
8120-6961 Daisy chain' power cord (Black) - 14 AWG, 4.0m (13.1ft) long - Has (M) C20 plug for power input, and (F) C19 plug for power output
8121-0070 Power cord (Black) - 15 AWG, three conductor, 4.5m (14.8ft) long - Has straight (F) C19 receptacle (For 220V in China)
8121-0161 Power cord (Black) - 15 AWG, 2.5m (8.2ft) long - Has (M) 90 degree power plug and straight (F) C19 receptacle (For 220V in Israel)
A5220-67003 Narrow Single-Ended SCSI-2 slot load DVD-ROM drive - 6X DVD-ROM read, 32X CD-ROM read (Pioneer DVD-303/304) - Has headphone jack and volume control
A6093-63044 Cable - Intrusion Switch
A6144-63001/A6144-63007/A6144-63019 Management processor M-cable
A6752-63021 Cable - Hot-swap System PCI Fan Internal Power Cable
A6752-63023 DVD-ROM drive power cable
A6752-63025 Power cable - For front and rear hot-swap system fans, system fan external cable
A6752-63033 Mass storage power cable (Cable #1)
A6752-63034 Mass storage power cable #2
AB297-2010A PCI OLR ribbon cable
J3830A 25 ft Cable System Card to Port Module - RJ45 to HP-DB25 converter for Multiplexer
Other
1253-0703 PCX-W SOCKET (544)
5001-6892 Filler for empty PCI slot
5040-6317 Chassis intrusion switch
5065-7443 PCI card separator with light pipe
5069-6366 Cable management arm - For controlling the cables in a rack mount configuration
A5783A Token ring (IEEE 802.5 networks) 4/16/32Mbs network interface board
A6093-00239 SCSI interface board
A6093-40041 PCI OLR gate (latch) - Secures the PCI card and enables the PCI slot
A6093-67114 PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable
A6093-67214 PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable
A6198-67002 Filler panel - Used to cover an empty hard drive slot
A6752-00123 AC cord retention bracket
A6752-04017 Core I/O slot filler panel
A6752-04045 Lift handle assembly (left)
A6752-04048 Lift handle assembly (right)
A6752-04066 Front bezel assembly - Does not include the nameplate
A6752-67005 Front display panel - Has seven activity LEDs, power button, metal mounting bracket, and 36.8cm (14.5in) long ribbon cable
A6752-67025 Main system power harness
A6752-67036 PCI card cage access panel
A6752-67041 DVD-ROM drive bay filler panel
A6752-67042 Rack anti-tip foot
A6752-69014 PCI backplane (card cage assembly) - Includes the metal PCI backplane cage and the 16 slot PCI backplan
J2484A HP RJ45/RS-232 16 Port Multiplexer interface module
J2485A HP DB25/RS-232 16 Port Multiplexer interface module
J2488A RJ45 to HP-RJ45 converter
J2501A HP RS-422/RJ45 16 Port MUX Multiplexer interface module
J4392-87900 Rack ballast (graphite)
