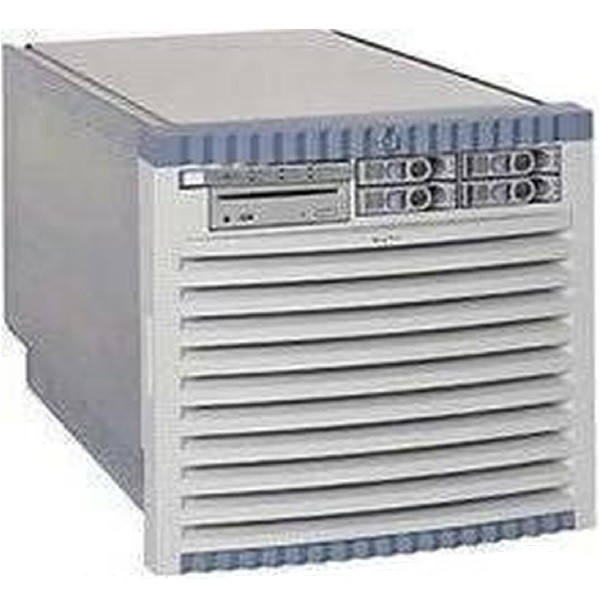

HP 9000 Server RP7420 - 16 Way AB208A
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | HP 9000 Server RP7420 - 16 Way AB208A | Status: | Stock |
|---|---|---|---|
| Area: | Global | Express: | DHL EMS FEDEX |
| High Light: | AB208A HP 9000 Server,AB208A HP 9000 16 Way Server,HP RP7420 16 Way Server |
||
HP 9000 Server RP7420 - 16 Way AB208A
component parts for the RP7420 AB028A
| Part Number | Description |
| CPU | |
| A6436A | HP PA-RISC processor upgrade kit - Includes two 900MHz PA-RISC 8800 dual core processors and attached heat sink with fan |
| A6437A | HP PA-RISC processor upgrade kit - Includes one 1.0GHz PA-RISC 8800 dual core processor and attached heat sink with fan |
| A6913-69112/A6913-67112 | Cell board assembly - With 1.0GHz processor |
| A6913-69113/A6913-67113 | Cell board assembly - With 1.1GHz processor, replacement |
| A6913-69206/A6913-67106 | Processor cell board assembly - Includes four 900MHz PA-RISC 8800 dual core processors, does not include memory |
| A6913-69207/A6913-67107 | Processor cell board assembly - Includes one 1.0GHz PA-RISC 8800 dual core processor, does not include memory |
| Processor Board | |
| A6752-69201/AB592B | System backplane - Has slots for cell boards and core I/O boards and connectors for system cables - Mounts vertically on the left side of the system |
| A6794-60001 | LAN/SCSI core I/O PCI board (Procurium) |
| A6794-69101/A6794-60101 | LAN/SCSI core I/O PCI board (Procurium) |
| A6913A | Processor and memory cell board - Does not include processors or memory (Rp74/84, rx76/86 cpu) |
| A9918-69001 | Hot-swap core I/O board - Has one parallel and one RJ-45 LAN connector and many status LEDs |
| A9918A | Hot-swap core I/O board - Has one parallel and one RJ-45 LAN connector and many status LEDs |
| Memory | |
| A5198-69101 | 512MB high-density SyncDRAM DIMM memory |
| A6098-69101 | 1GB high-density SDRAM DIMM (single DIMM) |
| A6100-69001 | 2GB high-density SDRAM DIMM |
| AB307A | 2.0GB SDRAM DIMM memory module upgrade kit - Includes a pair of 1GB high-density SDRAM DIMMs |
| AB308A | 4.0GB SDRAM DIMM memory upgrade kit - Includes four 1GB high-density SDRAM DIMMs |
| AB309A | 8.0GB SDRAM DIMM memory module upgrade kit - Includes four 2GB high-density SDRAM DIMMs |
| AB322-69001 | 4.0GB high-density SDRAM DIMM memory module |
| Hard Drive | |
| A9878A | 20/40GB Ultra Wide Low Voltage Differential/Single-Ended (LVD/SE) SCSI-2 DDS-4 DAT drive (Carbon) - 5.25-inch form factor, half-height |
| A9880A | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9880AR | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9881A | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9881AR | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9882A | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| A9882AR | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AB420-69001/AB420-67001 | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AB421-69001/AB421-67001 | 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon black and port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| AB422-69001/AB422-67001 | 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high |
| Backplane Board | |
| A6752-67044 | Mass storage backplane - Has four SCA SCSI connectors for hot-swap drives - Mounts in the back of the hard drive cage |
| SCSI | |
| A6828A | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system |
| A6829A/A6829-60101 | Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| Ethernet | |
| A5230A | 100base-TX PCI LAN adapter with one RJ-45 port - LAN Adapter - 100base-TX PCI LAN adapter with one RJ-45 port |
| A5506B | 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al |
| A5838A | PCI 5.0v dual port 10base-T/100base-TX LAN and dual port Ultra2 Low Voltage Differential/Single-Ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-pin very high density connectors - Dual port 10/100base-T LAN and Dual port Ultra2 LV |
| A6825A | 1000base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one 64-bit PCI slot - For HP-UX operating system |
| A6847A | 1000base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system |
| Adapter | |
| A5513A | PCI Asynchronous Transfer Mode (ATM) 155Mbps Multi-mode Fiber Adapter |
| A6748A | HP 8-port MUX PCI Multiplexer interface board - Speeds up to 230,400 bps per port, 33MHz bus speed - Occupies one PCI slot - For HP-UX operating system |
| A6749A | HP 64-port MUX PCI Multiplexer interface board |
| J3525A | Dual Port PSI Card for HP 3000/9000 - Two port X.25 PCI frame relay adapter card |
| Fibre | |
| A6386A | HyperFabric2 PCI 4X fiber adapter interface and switch - For HP-UX operating system |
| A6795A | 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors |
| A6795AR | 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors |
| Power | |
| 0957-2187 | PCI power supply module - Hot-swap power module for the PCI backplane |
| A6752-69044/0950-4611 | Hot-swap power supply (1776W) |
| A6752-69213 | AC power supply - Hot-swap redundant power supply module |
| VRM | |
| 0950-4122 | Low voltage DC to DC conterter (low voltage VRM) |
| 0950-4123 | High voltage DC to DC conterter (high voltage VRM) |
| 0950-4708 | Low voltage DC to DC conterter (low voltage VRM) |
| DVD | |
| A9879A | IDE DVD-ROM drive - 5.25-inch form factor |
| AB351-67002/AB351-2100A | Server optical drive - Integrated Drive Electronics (IDE) DVD +RW |
| Fan | |
| A6752-04071 | Smart fan assembly - For hot-swap PCI card cage (PCI C/C) |
| A6752-67129/A6752-67046/A6752-67029 | Smart fan - Front/rear hot-swap, assembly |
| AB388-00005 | TurboCooler fan - 66mm, Central Processing Unit (CPU) |
| Rack | |
| A6752-67011 | CD/DVD-ROM drive mounting rail |
| J1530A | Field rack mount kit for rpXXXX series servers |
| Cable | |
| 8120-6895 | Power cor(Black) - 15 AWG, 4.5m (14.8ft) long - Has a stripped end for power input and straight C19 (F) receptacle for power output |
| 8120-8494 | Power cor(Black) - 15 AWG, 4.5m (14.8ft) long - Has NEMA L6-20P (M) plug for power input and (F) C19 receptacle for power output (for 240VAC in North America) - (E7803A) |
| 8121-0070 | Power cor(Black) - 15 AWG, three conductor, 4.5m (14.8ft) long - Has straight (F) C19 receptacle (For 220V in China) |
| A6093-63044 | Cable - Intrusion Switch |
| A6144-63001/A6144-63007/A6144-63019 | Management processor M-cable |
| A6752-63019 | SCSI cable bundle assembly |
| A6752-63021 | Cable - Hot-swap System PCI Fan Internal Power Cable |
| A6752-63023 | DVD-ROM drive power cable |
| A6752-63025 | Power cable - For front and rear hot-swap system fans, system fan external cable |
| A6752-63033 | Mass storage power cable (Cable #1) |
| A6752-63034 | Mass storage power cable #2 |
| A6752-63035 | SCSI cable bundle assembly |
| A7027-63003 | Cable - Internal smart array RAID cable |
| AB297-2010A | PCI OLR ribbon cable |
| Other | |
| 5001-6892 | Filler for empty PCI slot |
| 5040-6317 | Chassis intrusion switch |
| 5065-7443 | PCI card separator with light pipe |
| A5201-68003 | DIMM module installer tool |
| A5201-68004 | Anti-static mat, 24in x 36in with grounding strap |
| A5201-68017 | DIMM module removal tool |
| A5783A | Token ring (IEEE 802.5 networks) 4/16/32Mbs network interface board |
| A6093-40041 | PCI OLR gate (latch) - Secures the PCI card and enables the PCI slot |
| A6093-67114 | PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable |
| A6093-67214 | PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable |
| A6093-69213/A6093-60113 | PCI-X card cage assembly - Includes the PCI-X I/O board, PCI card separators, metal card cage with fan frame |
| A6093-69313/A6093-60013 | PCI Express (Pci-X) card cage kit - Includes the PCI-X I/O board, PCI card separators, metal card cage |
| A6198-60003 | Hot-swap hard drive slot filler panel (Carbon Black) |
| A6752-00123 | AC cord retention bracket |
| A6752-04017 | Core I/O slot filler panel |
| A6752-04045 | Lift handle assembly (left) |
| A6752-04048 | Lift handle assembly (right) |
| A6752-67005 | Front display panel - Has seven activity LEDs, power button, metal mounting bracket, and 36.8cm (14.5in) long ribbon cable |
| A6752-67025 | Main system power harness |
| A6912-00014 | DVD-ROM drive slot filler panel (Carbon) |
| A6912-04010 | Front status panel display bezel - Does not include status panel |
| A6912-60001 | Processor terminator |
| A6913-67005 | Processor cell board air flow baffle |
| A7025-04001 | Front bezel (Graphite) - Does not include nameplate |
| A7025-04002 | Front status panel display bezel - Does not include status panel |
| A7025-40003 | Nameplate for rp7420 (Graphite) |
| A7027-67001 | Side and top covers kit (Graphite) - Includes top, right side, and left side covers |
| A9903A | Pedestal configuration kit - Includes parts needed to convert from rack mount to pedestal |
| C1099A | Alphanumeric terminal console |
