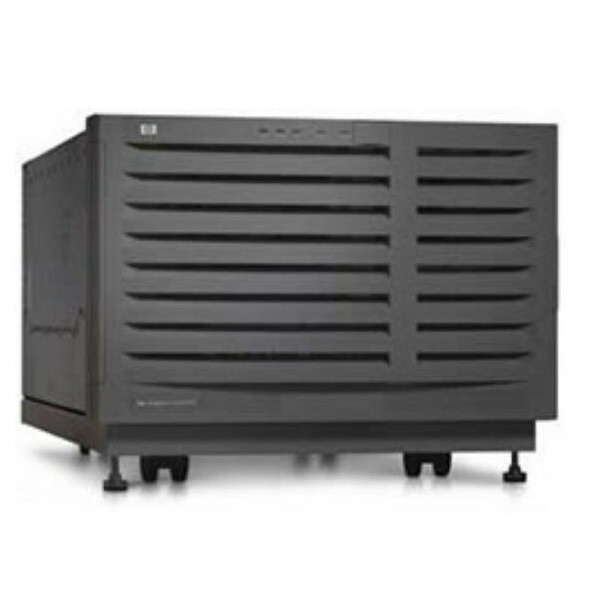

HP Integrity Itanium Server - RX5670 (900MHz) A6990A

HP Integrity Itanium Server - RX5670 (900MHz) A6990A

large.img.alt
small.img.alt

Large Image :  HP Integrity Itanium Server - RX5670 (900MHz) A6990A Get Best Price

Product Details:
Place of Origin: USA
Brand Name: HP
Certification: HP Certificated
Model Number: HP Integrity Itanium Server - RX5670 (900MHz) A6990A
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Contact us
Packaging Details: Sealed Retail Box
Delivery Time: 1-2 Days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000PCS/Month
Detailed Product Description
Name: HP Integrity Itanium Server - RX5670 (900MHz) A6990A Status: Stock
Area: Global Express: DHL EMS FEDEX

HP Integrity Itanium Server - RX5670 (900MHz) A6990A

component parts for the RX5670 A6990A

Part Number Description
CPU
A6695-69005 Processor (extender) board - Has four processor sockets - Plugs into the system baseboard
A6820-69101 Intel Itanium 2 processor - 900MHz (McKinley, 400MHz front side bus, 1.5MB Level-3 cache)
A6820A Intel Itanium 2 processor upgrade - Includes one 900MHz (200MHz front side bus, 1.5MB cache)processor
A6836A Intel Itanium 2 processor upgrade - Includes one 1.0GHz (200MHz front side bus, 3MB cache) processor
A9809-69001 Intel Itanium 2 processor - 1.00GHz (McKinley, 400MHz front side bus, 3.0MB Level-3 cache)
A9810-69001 Intel Itanium 2 processor - 1.5GHz (McKinley, 400MHz front side bus, 3.0MB Level-3 cache)
Processor Board
A6695-69306 System baseboard - Has slots and connections for processor boards, memory boards, and other boards
A6869-67501 VGA video/USB core I/O PCI board - Has one video connector and two USB connectors
A6875A Management processor board - For controlling the system console, reset and power management functions - Includes SIO (remote, console and UPS), VGA and LAN connectors - NOT supported in tower configurations
Memory
A6746A 2.0GB DDR-SDRAM memory upgrade kit - Includes four 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
A6833A 1.0GB DDR-SDRAM memory upgrade kit - Includes four 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
A6834-69001 1.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module
A6834A 4.0GB DDR-SDRAM memory upgrade kit - Includes four 1.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
A6967AX 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module
A6968AX 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module
Hard Drive
A5558A 12GB/24GB Single-Ended SCSI-2 DDS-3 (DAT) tape drive - 5.25in form factor
A6091A HP 73GB hot-plug Ultra2 SCSI hard drive - 10,000 RPM, low profile
A6091AR HP 73GB hot-plug Ultra2 SCSI hard drive - 10,000 RPM, low profile
A6276-69002 73.4GB hot-swap Ultra-2 LVD SCSI hard drive module - 10,000 RPM, low profile
A6736-69002 18GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6736A 18GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6736AR 18GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6737-69002 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6737A 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6737AR 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6738-69002 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA
A6738A 73GB hot-plug Ultra160 Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6738AR 73GB hot-plug Ultra160 Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6845-69002 18GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile,80-pin SCA connector
A6845A 18GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile,80-pin SCA connector
A6845AR 18GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile,80-pin SCA connector
A6846-69002 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile,80-pin SCA connector
A6846A 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile,80-pin SCA connector
A6846AR 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile,80-pin SCA connector
A7051A 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile,80-pin SCA connector
A7051AR 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile,80-pin SCA connector
RAID
P3475B NetRAID-2m dual channel disk array controller with 128MB cache - PCI board with two internal 68-pin high density and four external 68-pin very high density Ultra3 SCSI connectors
SCSI
A5159A Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system
A6828A Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system
A6828AR Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system
A6829A/A6829-60101 Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system
A6829AR Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system
Ethernet
A5506B 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al
A6847A 1000base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system
A8084A FireWire (IEEE-1394A) adapter - 3-port
A8685A 1000base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector - Requires one PCI slot - For HP-UX operating system
B5509BA 100base-TX LAN host adapter board with one RJ-45 port - Requires one PCI slot - Includes the board, software, software license, and installation instructions - For HP-UX operating system
P3492A 10/100base-T IPSec (3DES) LAN host adapter board - With one RJ-45 connector - Reqires one PCI slot - For Windows and Linux operating systems
Graphics
A6869A HP Graphics USB Card (rx5670) - VGA video/USB core I/O PCI board - Has one video connector and two USB connectors
Power
A5527-69001 Hot-swap redundant power supply - 100/240VAC input, 50/60Hz, autoswitching
DVD
A5557A Narrow Single-Ended SCSI-2 slot load DVD-ROM drive - 6X DVD-ROM read, 32X CD-ROM read (Pioneer DVD-303/304) - Has headphone jack and volume control
Tape
C1537-69202 12GB/24GB Single-Ended SCSI-2 DDS-3 (DAT) tape drive - 5.25-inch form factor - (part of A3542A, A4249A)
Fan
A5191-04003 172mm I/O card cage `hot swap` fan
A5191-67006 `Hot swap` fan for the power converter
A6695-04006 172mm `hot swap` chassis fan
Cable
8120-1378 Power cor(Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
A5191-63002 Drive power cable - 4-pin (F) connector to 4-pin (F) connector - 8.5cm (3.3in) long - From DVD-ROM/DDS drive to drive/media backplane
A5191-63003 Power cable - 10-pin (F) connector to 10-pin (F) connector - 11.4cm (4.5in) long - From PCI I/O backplane to drive/media backplane
A5191-63004 Data cable - Has 10-pin (F) connectors - From PCI I/O backplane to disk/media backplane
A5191-63006 SCSI ribbon cable - One 68-pin (M) connector on each end - 39.6cm (15.6in) long - SCSI bus-B - From 4-port SCSI card to drive/media backplane
A5191-63009 Power cable assembly - Large 6-pin (F) connector to small 6-pin (F) connector - 8.3cm (3.3in) long - For the rear chassis fan
A5191-63010 Power cable assembly - Large 6-pin (F) connector to small 6-pin (F) connector - 20.2cm (8.0in) long - For the front chassis fan
A5191-63011 Ribbon cable - Has two 10-pin (F) connectors - 54cm (21.3in) long - From system board to display board
A5191-63013 Drive power cable - Has two 4-pin (F) connectors - 13.5cm (5.3in) long - From DDS drive to disk/media backplane
A5220-67003 Narrow Single-Ended SCSI-2 slot load DVD-ROM drive - 6X DVD-ROM read, 32X CD-ROM read (Pioneer DVD-303/304) - Has headphone jack and volume control
A6144-63005 Power harness cable kit - Includes cable and hardware
A6695-63001 SCSI ribbon cable - One 68-pin (M) connector on each end - Bus A inner SCSI cable
A6695-63002 Outer removable media SCSI ribbon cable - One 68-pin (M) connector on each end
A6695-63004 Chassis intrusion switch cable
A6695-63007 NetRAID SCSI cable - Has one Very High Density 68-pin SCSI connector at each end
A6695-63008 NetRAID board SCSI ribbon cable - For channel 1
A6695-63009 SCSI ribbon cable - From DDS drive to disk media backplane
A6695-63010 SCSI ribbon cable - One 50-pin (M) connector on each end
A7003A NetRaid board SCSI cables kit - Includes channel 0 and 1 cables
Cabinet
A5191-04013 Front bezel assembly - Mounts on the front of the server - Requires bezel hardware kit
A6695-04011 Top cover
Other
5001-7430 Empty I/O slot cover
5040-6317 Chassis intrusion switch
A3639-04024 PCI card separator/extractor with light pipe
A5191-60013 Display board - Has on/off switch and five server status LEDs
A5191-67104 Disk/media backplane - Has power and SCSI connectors for removable media mass storage devices on one side and four SCA connectors for hot-plug hard drives on the other side
A5191-69105 Power converter - Converts the input voltage 100/240V to power that can be used by the power supplies - Has three power cord input plugs
A5236-40024 Disk filler panel - Fills an empty drive module slot
A6695-00023 Rear I/O card guide
A6695-00024 Rear chassis brace
A6695-00025 Front I/O card guide
A6695-00026 Shuttle plate
A6695-00054 Memory extender slot filler - Fills an empty memory extender slot
A6695-69004 PCI card backplane - Has 12 PCI slots
A6695-69101 MP/SCSI core I/O PCI board
A6747-69101 Memory extender (carrier) board - Has 20 DIMM slots
A6747A Memory extender (carrier) board - Has 20 DIMM slots
A6794-69001 LAN/SCSI core I/O PCI board (Procurium)
