HP Integrity Server RX4640-8 - Two way 1.5GHz AB372AR

HP Integrity Server RX4640-8 - Two way 1.5GHz AB372AR

large.img.alt
small.img.alt

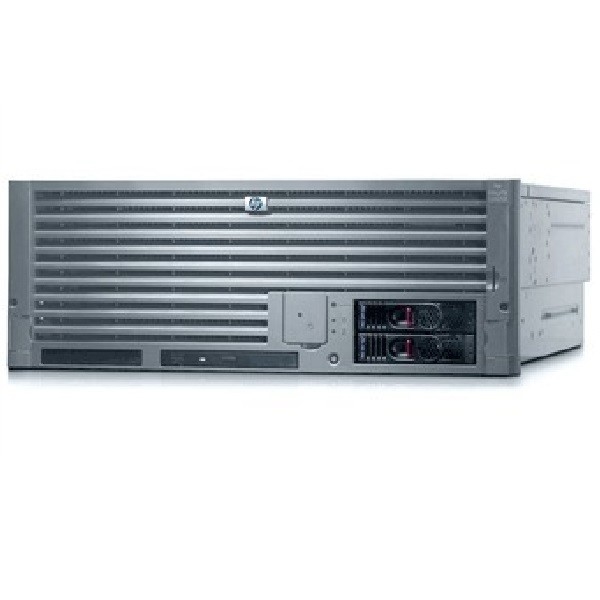

Large Image :  HP Integrity Server RX4640-8 - Two way 1.5GHz AB372AR Get Best Price

Product Details:
Place of Origin: USA
Brand Name: HP
Certification: HP Certificated
Model Number: HP Integrity Server RX4640-8 - Two way 1.5GHz AB372AR
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Contact us
Packaging Details: Sealed Retail Box
Delivery Time: 1-2 Days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000PCS/Month
Detailed Product Description
Name: HP Integrity Server RX4640-8 - Two Way 1.5GHz AB372AR Status: Stock
Area: Global Express: DHL EMS FEDEX
High Light:

AB372AR RX4640 HP Integrity Server

,

RX4640-8 Two way server

,

1.5GHz RX4640-8 HP Integrity Server

HP Integrity Server RX4640-8 - Two way 1.5GHz AB372AR

component parts for the RX4640 AB372AR

Part Number Description
CPU
A7158-69101 Intel Itanium 2 processor - 1.5GHz (McKinley, 400MHz front side bus, 6.0MB Level-3 cache)
A7158A Intel Itanium 2 processor upgrade - Includes one 1.5GHz (400MHz front side bus, 6.0MB cache) processor
A7159-69101 Intel Itanium 2 processor - 1.3GHz (McKinley, 400MHz front side bus, 3.0MB Level-3 cache)
A7159A Intel Itanium 2 processor upgrade - Includes one 1.3GHz (400MHz front side bus, 3.0MB cache)
A9730-69101 HP mx2 dual-core processor module - 1.1GHz (Hondo)
A9730A HP mx2 processor upgrade - Includes one 1.1Ghz dual-core processor
A9731-69103 Intel Itanium 2 processor - 1.5GHz (McKinley, 400MHz front side bus, 4.0MB Level-3 cache)
A9732-69004/A9732-67004 Intel Itanium 2 processor - 1.6GHz (Madison 9M, 400MHz front side bus, 6.0MB Level-3 cache)
A9732-69103 Intel Itanium 2 processor - 1.6GHz (Madison 9M, 400MHz front side bus, 6.0MB Level-3 cache)
A9767AX/A9732AX HP mx2 dual-core processor module - 1.1GHz
Processor Board
A6961-67005 Midplane riser board - Has slots for the processor board, memory board, and I/O base board
A6961-67007 Processor extender board - Has two processor sockets on one side and two on the other side
A6961-67009 QuickFind diagnostic board - Includes the plastic cover and label
A6961-67015 Power distrubution board - Has connectors for two hot-swap power supplies - Attached to the rear power supply cage underneath the hot-swap power supply fan unit
A6961-67105 Midplane riser board - Has slots for the processor board, memory board, and I/O base board
A6961-67106 Printed Circuit Assembly (PCA) - Small Computer Systems Interface (SCSI) duplex board
A6961-67206 Printed Circuit Assembly (PCA) - Small Computer Systems Interface (SCSI) duplex board
A6961-69007 Processor extender board - Has two processor sockets on one side and two on the other side
A6961-69204/A6961-67204 Memory board - 16 SLOT memory carrier
A6961-69207/A6961-67207 Processor extender board - Has two processor sockets on one side and two on the other side
A6961-69501 I/O baseboard - Has eight 64-bit PCI slots - Includes VRMs
A6961-69511/A6961-67411 I/O baseboard - Has eight 64-bit PCI slots - Includes VRMs
A6961-69804/A6961-67804 Memory board - 16-slot memory carrier
A9738B 16-DIMM memory carrier board - Supports up to four quads of memory
A9739-69007 Memory board PCA (32-slot) - For firmware versions greater than 1.13
A9739-69008/A9739-67008 Memory board PCA (32-slot) - For firmware versions greater than 1.13
A9739B HP 32DIMM Memory Carrier Board - Supports up to eight quads of memory
Memory
309521-001/309521-001N 128MB battery backed write cache (BBWC) memory board - 72-bit, DDR memory
A6834-69001 1.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module
A6835-69001 2.0GB, 266MHz, PC2100, registered ECC, DDR SDRAM, DIMM memory module
A6835A 8.0GB DDR-SDRAM memory upgrade kit - Includes four 2.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
A6967A 1.0GB DDR-SDRAM memory upgrade kit - Includes four 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
A6967AX 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module
A6968A 2.0GB DDR-SDRAM memory upgrade kit - Includes four 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
A6968AX 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module
A6969A 4.0GB DDR-SDRAM memory upgrade kit - Includes four 1.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
A6969AX/A6969-69001 1.0GB, 266MHz, PC2100, ECC DDR-SDRAM DIMM memory module
A6970A 8.0GB DDR-SDRAM memory upgrade kit - Includes four 2.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
Hard Drive
0950-4381E0/0950-4381 73GB hard drive - 15,000RPM, U320
A7080-69002 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high
A9761-69001 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
A9896A 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
A9896AR 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
A9897A 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
A9897AR 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
A9898-69002 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high
A9898A 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high
A9898AR 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high
AB420-69001/AB420-67001 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
AB421-69001/AB421-67001 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon black and port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
AB422-69001/AB422-67001 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high
Backplane Board
A6961-67024 SCSI backplane board - Has two 80-pin SCA hot-swap drive sockets - Includes the management board and simplex board
A6961-67205 SCSI backplane board - Has two 80-pin SCA hot-swap drive sockets - Includes the management board and simplex board
RAID
A9890A Smart Array 6402 Ultra320 SCSI RAID controller - 64-bit, 133MHz PCI-X interface - Two internal or two external Ultra320 SCSI channels and 128MB of battery-backed memory
SCSI
309520-001/309520-001N 128MB Smart Array 6402 Ultra320 SCSI controller - Two internal or two external Ultra320 SCSI channels - 133MHz PCI-X interface with RAID XOR engine - Does not include cache memory module or dual channel daughter board
A6828A Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system
A6829A/A6829-60101 Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system
A7059A Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For Windows or Linux operating systems
A7060A Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For Windows and Linux operating systems
Ethernet
A5230A 100base-TX PCI LAN adapter with one RJ-45 port - LAN Adapter - 100base-TX PCI LAN adapter with one RJ-45 port
A5506B 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al
A5838A PCI 5.0v dual port 10base-T/100base-TX LAN and dual port Ultra2 Low Voltage Differential/Single-Ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-pin very high density connectors - Dual port 10/100base-T LAN and Dual port Ultra2 LV
A6825A 1000base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one 64-bit PCI slot - For HP-UX operating system
A6847-67101 1000 base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one PCI slot
A6847A 1000base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system
A7012A/A7012-60601 1000 base-T Gigabit PCI-X Ethernet network interface adapter board - Has two RJ-45 network ports requires one 64-bit PCI-X slot1000 base-T Gigabit PCI-X Ethernet network interface adapter board - Has two RJ-45 network ports requires one 64-bit PCI-X slo
A7061A 1000 base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one PCI slot - For Windows and Linux operating systems
A7073A 1000 base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one PCI slot - For Windows and Linux operating systems
A9899A 1000base-SX Gigabit PCI-X Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI-X slot - For Linux and Windows operating systems
A9900A 1000base-T Gigabit PCI-X Ethernet network interface adapter board - Has two RJ-45 connectors, requires one 64-bit PCI-X slot - For Linux and Windows operating systems
Adapter
A5513A PCI Asynchronous Transfer Mode (ATM) 155Mbps Multi-mode Fiber Adapter
A6748A HP 8-port MUX PCI Multiplexer interface board - Speeds up to 230,400 bps per port, 33MHz bus speed - Occupies one PCI slot - For HP-UX operating system
A6749A HP 64-port MUX PCI Multiplexer interface board
A7782-63001 USB to two-port PS/2 adapter - For converting one or two legacy or contemporary PS/2 devices to USB - For USB only systems running HP-UX 10.20 or later - One type `A` Male USB connector to two 6-pin mini-DIN connectors, 38.1cm (15in) long cable - (A7782A)
J3525A Dual Port PSI Card for HP 3000/9000 - Two port X.25 PCI frame relay adapter card
Graphics
30-10119-02 ATI RADEON 7500 graphics controller - 64MB DDR SDRAM memory, 350MHz RAMDAC
AB551A ATI Radeon 7500 PCI graphics card - Capable of 24-bit true color resolutions up to 2048 x 1536 and refresh rate to 200Hz
Fibre
A6386A HyperFabric2 PCI 4X fiber adapter interface and switch - For HP-UX operating system
A6795A 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors
A6795AR 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors
A6826A 2Gbps Fiber Channel host bus adapter - For 64-bit Linux and HP-UX - Dual channel, short wave, 64-bit, 133MHz PCI-X - Has LC connectors
A9782A 1000base-SX and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC connectors
A9784A 1000base-T and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, copper and short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC and RJ-45 connectors
AB232A 2Gbps Fiber Channel host bus adapter - For Itanium Servers running Windows Server 2003 - Single channel, short wave, 64-bit, 133MHz data rate - Has two rear panel LC connectors and two activity LEDs - Occupies one PCI-X slot
AB286A HP 2-port InfiniBand host channel adapter, PCI-X - For the HP-UX operating system
Power
A5137AZ Modular power distribution unit (part of the master rack) - 16A (amps), 100/240VAC, six C13 and two C19 outlets, mounts directly to the rack columns (separate installation kit is not required)
A6961-67225 Power supply - 700W,48V
A6976A HP Hot Swap Redundant Power Supply - 4U chassis
VRM
0950-4417 Voltage Regulator Module (VRM) 12.0VDC
0950-4418 Voltage Regulator Module (VRM) 5.0VDC
0950-4419 Voltage Regulator Module (VRM) 3.3VDC
Battery
1420-0386 3.0V battery - 250mAh, lithium coin cell battery - Type CR2330 or equivalent - Not rechargeable - Used on the cell board
307132-001 3.6V battery pack assembly - 500mAh nickel metal hydride (NiMH) - Oval shaped, 12.5mm (0.5in) high, 38mm (1.5in) wide, and 77mm (3.0in) long
DVD
A7007A HP rx4640/rp4440-8 DVD/CD-RW Drive - Slimline, DVD drive CD write capable on 4U chassis
A7163-67002 Slimline DVD-ROM drive - DVD-R, CD-R
A7163A Slimline DVD-ROM (read-only) Drive - For 4U chassis
AB349-67102 Slimline DVD-ROM/CD-RW combination drive
AB349A HP Slimline 4U Chassis DVD+RW Drive
Fan
A6961-04028 Power supply hot-swap fan assembly - Includes two fans mounted in a metal frame - Smaller of the two fan sizes found in the chassis
A6961-04055 I/O section hot-swap fan assembly - Includes two fans mounted in a metal frame - Larger of the two fan sizes found in the chassis
Rack
A6977-67001 Right rack mount bracket
A6977-67002 Left rack mount bracket
A6977A Rack mount kit - Includes side-mount slides and cable management arm
A6979A Pedestal kit - Includes parts required to change from the rack mount configuration to deskside pedestal
Cable
305717-001 VGA video cable - 1.8m long
405627-001/212528-001 Monitor video cable - DVI-D signal connector, molex plug
8120-0668 Power cor(Black) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V/240V in South America)
8120-5341 Power cor(Black) - 17 AWG, 3-wire, 2.5m (8.2ft) long - Has straight (F) C15 receptacle with a `U` shaped channel above the ground pin to prevent use of a lower rated power cor(For 240VAC in South Africa and India)
8120-6814 Power cor(Flint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (for 220V in Denmark)
8121-0877 Power cord - 3-conductor, 2.5m (8.2ft) long
A6961-63014 Power distribution board to midplane board cable - Has 10-pin connectors at each end
A6961-63015 Power distribution board to midplane board ribbon cable
A6961-63016 QuickFind diagnostic board to midplane board cable
A6961-63017 Internal SCSI cable
A6961-63018 SCSI backplane board to midplane board cable
A6961-63020 SCSI controler jumper cable (simplex only)
Other
302268-003 HP P930 19-inch monitor (North America and Japan)
302270-003 HP P1130 21-inch CRT monitor (Silver) (North America and Japan)
302349-001 Replacement HP P1130 21-inch color monitor - Has two 15-pin VGA connectors (For use in Europe and China)
303102-003 L2025 20-inch LCD flat panel display (Americas)
303486-003 HP L1825 18-inch flat panel display (North America and Japan)
305538-021 P930 series 19in performance monitor (Carbon Black bucket with silver bezel) - For the northern hemisphere - Flat screen, 18in viewable area, 0.24mm pitch, 1600 x 1200 @ 85Hz max resolution - Has attached 1.8m (5.9ft) cable with 15-pin `D` connector
308684-B24 HP L1825 18-inch flat panel TFT display (HP color scheme) - Has one analog (15-pin VGA) and one digital DVI-D input (For use in Europe and Asia Pacific)HP L1825 18-inch flat panel TFT display (HP color scheme) - Has one analog (15-pin VGA) and one digital DVI-D input (For use in Europe and Asia Pacific)
309101-B24 HP L2025 20-inch flat panel TFT display (HP color scheme) - Has one analog (15-pin VGA) and one digital DVI-D input (For use in Europe and Asia)
337988-001 L2035 monitor, TCO-03, 20-inch active-matrix, TFT, native resolution of 1,600 x 1,200 pixels at 60 Hz
435302-051 PS/2 Windows keyboard assembly (Silver and Carbonite Black) - Has attached 1.8m (6.0ft) cable with 6-pin mini-DIN connector (French)
437315-001 Replacement 24-inch color monitor with 22.5-inch viewable image (P/O A7217A) - Has 19201200 max resolution @ 75Hz and 0.24mm dot pitch - Includes HD-15 and five BNC video inputs - For the northern hemisphere
516690-001 LP2275w 22-inch replacement monitor
A3739B Dual fiber distributed data interface (FDDI) adapter - Has a dual-attach connection to a FDDI - With two SC duplex-style keyed connectors
A5783A Token ring (IEEE 802.5 networks) 4/16/32Mbs network interface board
A6825-67101/A6825-69101 1000base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one 64-bit PCI slot1000base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one 64-bit PCI slot
A6961-40034 DIMM slot filler - Covers unused DIMM slots to aid in cooling - One DIMM filler covers two adjacent DIMM slots
A6961-67008 Front display/status panel - Has the power button and three status LEDs
A6961-67020 I/O board divider - Provides short circuit protection to the hot-plug PCI accessory boards - Includes doorbell and latch
A6961-67021 PCI retention clip
A6961-67022 Front bezel for rack mount configuration
A6961-67113 DVD-ROM drive I/O board - Has slimline DVD-ROM drive connector and cable connector for DVD I/O board to midplane board cable
A6961-67213 DVD-ROM drive I/O board - Has slimline DVD-ROM drive connector and cable connector for DVD I/O board to midplane
A6979-04001 Pedestal kit - Includes parts required to change from the rack mount configuration to deskside pedestal
A7298A StorageWorks 2 Gbps Fiber Channel Interface - 64-bit PCI or PCI-X bus PC board using shortwave Multimode cable with LC connector
A7782A USB to 2-port PS/2 adapter - For converting one or two PS/2 devices to USB - For USB only systems running HP-UX 10.20 or later - One type 'A' male USB connector to two 6-pin mini-DIN connectors, 38.1cm (15in) long cable
A7861C USB keyboard and mouse kit - Includes USB Windows 104/105-key keyboard (Carbon black) and USB two-button scrolling mouse (Carbon black)
AB227A Reflection terminal emulation software (CD-ROM)
AB291A HP PCI-X 12 Port InfiniBand Copper Switch
AB300A HP9000 and Integrity server console - Includes T5500 Thin Client, S5500 monitor, keyboard, mouse, and power cord
AB370B base system with dual-port gigabit LAN, dual-channel Ultra320 SCSI controller - Not available with HP-UX and OpenVMS or the HP mx2 dual processor module
AB552A HP USB OpenVMS Keyboard and 3-Button wheel mouse kit
C1099-69001/C1099-62000 Alphanumeric terminal console for HP3000/9000 systems





Contact us:



Website is : www.kedehe.com


Email is : qs1971@hotmail.com



Skype is : qs1971@hotmail.com







HP Integrity Server RX4640-8 - Two way 1.5GHz AB372AR 0

Contact Details
ShenZhen KeDeHe Technologe Co.,Ltd

Contact Person: admin

Tel: +8613632806176

Send your inquiry directly to us
