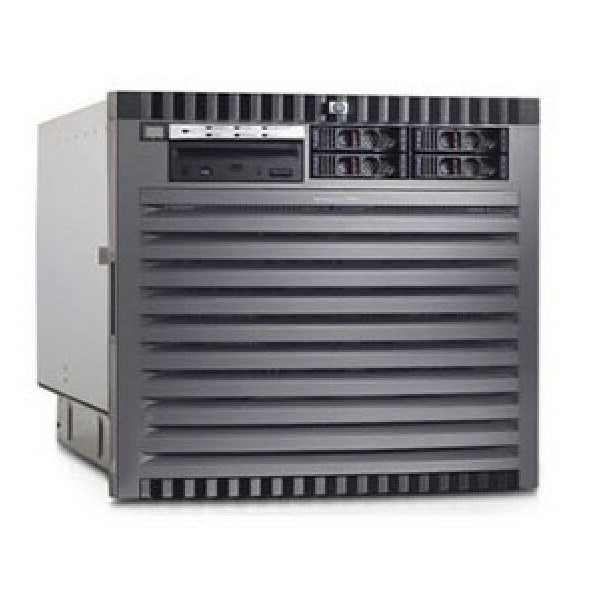

HP Integrity Servers RX7620 16-way FAST Solution AB344A

HP Integrity Servers RX7620 16-way FAST Solution AB344A

large.img.alt
small.img.alt

Large Image :  HP Integrity Servers RX7620 16-way FAST Solution AB344A Get Best Price

Product Details:
Place of Origin: USA
Brand Name: HP
Certification: HP Certificated
Model Number: HP Integrity Servers RX7620 16-way FAST Solution AB344A
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Contact us
Packaging Details: Sealed Retail Box
Delivery Time: 1-2 Days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000PCS/Month
Detailed Product Description
Name: HP Integrity Servers RX7620 16-way FAST Solution AB344A Status: Stock
Area: Global Express: DHL EMS FEDEX

HP Integrity Servers RX7620 16-way FAST Solution AB344A

component parts for the RX7620 16-way FAST Solution AB344A

Part Number Description
CPU
A6913-67007 Cell/Processor assembly - For 1.5GHz IPF processor
A6913-69016 Cell board - With 1.5GHz processor
A6913-69104 Intel Celeron processor - 1.3GHz
A6913-69108/A6913-67108 SPS-CELL ASSEMBLY W/ 1.1 GHZ HSPS-CELL ASSEMBLY W/ 1.1 GHZ H
A6913-69203/A6913-67103 Cell board assembly - Includes 1.5Ghz Itanium Processor Family (IPF), 6.0MB cache
A6913-69204/A6913-67104 Intel Celeron processor - 1.3GHz
A6913-69206/A6913-67106 Processor cell board assembly - Includes four 900MHz PA-RISC 8800 dual core processors, does not include memory
A6913-69207/A6913-67107 Processor cell board assembly - Includes one 1.0GHz PA-RISC 8800 dual core processor, does not include memory
A6913-69303 900MHz PA-RISC dual core processor
A6913-69306 Processor cell board assembly - Includes four 900MHz PA-RISC 8800 dual core processors, does not include memory
A9767A HP mx2 dual-processor module with two Intel Itanium 2 processors - 1.1GHz (Hondo, 4MB Level-3 cache)
AB439A Intel Itanium 2 processor 1.5GHz - Includes two processors (4M L3 cache)
AB548A Intel Itanium 2 processor 1.6GHz - Includes two processors (6M L3 cache)
Processor Board
A6794-60001 LAN/SCSI core I/O PCI board (Procurium)
Memory
AB307A 2.0GB SDRAM DIMM memory module upgrade kit - Includes a pair of 1GB high-density SDRAM DIMMs
AB308A 4.0GB SDRAM DIMM memory upgrade kit - Includes four 1GB high-density SDRAM DIMMs
AB309A 8.0GB SDRAM DIMM memory module upgrade kit - Includes four 2GB high-density SDRAM DIMMs
AB322A 16GB SDRAM DIMM memory module upgrade kit - Includes four 4GB high-density SDRAM DIMMs
Hard Drive
A9878A 20/40GB Ultra Wide Low Voltage Differential/Single-Ended (LVD/SE) SCSI-2 DDS-4 DAT drive (Carbon) - 5.25-inch form factor, half-height
A9880A 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
A9880AR 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
A9881A 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
A9881AR 73GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
A9882A 146GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high
AD050A 300GB hot-plug Ultra160 SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high
AD050AR 300GB hot-plug Ultra160 SCSI hard drive - 10,000 RPM, 3.5-inch form factor, 1.0-inch high
RAID
A9890A Smart Array 6402 Ultra320 SCSI RAID controller - 64-bit, 133MHz PCI-X interface - Two internal or two external Ultra320 SCSI channels and 128MB of battery-backed memory
SCSI
A5149A PCI Ultra2 Low Voltage Differential SCSI adapter - Has one external very high density 68 pin connector with thumbscrews and one internal high density 68 pin connector with latch/clips
A5150A Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors
A6828A Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system
A6829A/A6829-60101 Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system
A7059A Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For Windows or Linux operating systems
A7060A Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For Windows and Linux operating systems
A7173A/A6961-60011 Ultra320 SCSI Host Bus Adapter (HBA) - 64-Bit/133-MHz, dual channel, PCI-X interface (Option A6961-60011)
AB290A PCI-X 3.3v dual-port U320 SCSI plus dual-port 1000base-T adapter
Ethernet
A4926A LAN adapter - 1000base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations
A4929A LAN adapter - 1000base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations
A5230A 100base-TX PCI LAN adapter with one RJ-45 port - LAN Adapter - 100base-TX PCI LAN adapter with one RJ-45 port
A5506B 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al
A5838A PCI 5.0v dual port 10base-T/100base-TX LAN and dual port Ultra2 Low Voltage Differential/Single-Ended (LVD/SE) SCSI adapter - Has two RJ-45 LAN ports and two external 68-pin very high density connectors - Dual port 10/100base-T LAN and Dual port Ultra2 LV
A6825A 1000base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one 64-bit PCI slot - For HP-UX operating system
A6847A 1000base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system
A7061A 1000 base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector, requires one PCI slot - For Windows and Linux operating systems
A7073A 1000 base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one PCI slot - For Windows and Linux operating systems
A9899A 1000base-SX Gigabit PCI-X Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI-X slot - For Linux and Windows operating systems
A9900A 1000base-T Gigabit PCI-X Ethernet network interface adapter board - Has two RJ-45 connectors, requires one 64-bit PCI-X slot - For Linux and Windows operating systems
AB545A PCI-X 10/100/1000 four-port ¬copper (1000base-T) Gigabit Ethernet Adapter - Supports IEEE 802.3ab standard for Gigabit Ethernet, primary bus runs at a maximum of 133 MHz
Adapter
A5513A PCI Asynchronous Transfer Mode (ATM) 155Mbps Multi-mode Fiber Adapter
A6748A HP 8-port MUX PCI Multiplexer interface board - Speeds up to 230,400 bps per port, 33MHz bus speed - Occupies one PCI slot - For HP-UX operating system
A6749A HP 64-port MUX PCI Multiplexer interface board
J3525A Dual Port PSI Card for HP 3000/9000 - Two port X.25 PCI frame relay adapter card
Graphics
A6869A HP Graphics USB Card (rx5670) - VGA video/USB core I/O PCI board - Has one video connector and two USB connectors
Fibre
A5158A 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors
A6386A HyperFabric2 PCI 4X fiber adapter interface and switch - For HP-UX operating system
A6795A 2Gbps Tachyon XL2 PCI Fiber Channel adapter - For HP-UX operating system - Single channel, short wave, 64-bit, 66MHz PCI - Has LC connectors
A6826A 2Gbps Fiber Channel host bus adapter - For 64-bit Linux and HP-UX - Dual channel, short wave, 64-bit, 133MHz PCI-X - Has LC connectors
A7538A HP StorageWorks Linux Q2300 64-bit Host Bus Adapter (HBA)
A9782A 1000base-SX and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC connectors
A9784A 1000base-T and 2Gbps Fibre Channel Host Bus Adapter - For HP-UX - Dual channel, copper and short wave, 64-bit, 3.3V, 133MHz PCI-X - Has LC and RJ-45 connectors
AB232A 2Gbps Fiber Channel host bus adapter - For Itanium Servers running Windows Server 2003 - Single channel, short wave, 64-bit, 133MHz data rate - Has two rear panel LC connectors and two activity LEDs - Occupies one PCI-X slot
AB286A HP 2-port InfiniBand host channel adapter, PCI-X - For the HP-UX operating system
AB287A HP PCI-X 133MHz 10GbE SR Fiber Adapter
AB345A HP PCI-X 2-port 4X HA & DB Fabric Adapter
AB465A PCI-X double-port 2.0GB Fiber Channel (FC)/1000base-T Ethernet multifunction adapter card
AB466A 2Gb PCI-X-to-Fibre Channel Host Bus Adapter (HBA) - dual channel, 64-bit, 133 MHz
AB467A 2Gb PCI-X-to-Fibre Channel Host Bus Adapter (HBA) - Single channel, 64-bit, 133 MHz
Power
0957-2187 PCI power supply module - Hot-swap power module for the PCI backplane
A6752-69044/0950-4611 Hot-swap power supply (1776W)
A6752-69213 AC power supply - Hot-swap redundant power supply module
VRM
0950-4708 Low voltage DC to DC conterter (low voltage VRM)
0950-4709 High voltage DC to DC conterter (high voltage VRM)
DVD
A9879A IDE DVD-ROM drive - 5.25-inch form factor
AB351-67002/AB351-2100A Server optical drive - Integrated Drive Electronics (IDE) DVD +RW
AB351A HP Integrity rx7620 DVD/CD-RW Drive - Third party software (not included) is required to support DVD write capability with Windows
Fan
A6752-04071 Smart fan assembly - For hot-swap PCI card cage (PCI C/C)
Rack
J1530B Field Rackmount Kit - Needed for field installation into 19-inch wide HP Rack System/E or most third-party racks
J1530BZ Factory Rackmount Kit
Cable
A6752-63033 Mass storage power cable (Cable #1)
A6752-63034 Mass storage power cable #2
AB338A Internal Smart Array cable for rx7620/86
Other
A5783A Token ring (IEEE 802.5 networks) 4/16/32Mbs network interface board
A6093-67214 PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable
A6093-69213/A6093-60113 PCI-X card cage assembly - Includes the PCI-X I/O board, PCI card separators, metal card cage with fan frame
A6093-69313/A6093-60013 PCI Express (Pci-X) card cage kit - Includes the PCI-X I/O board, PCI card separators, metal card cage
A6794-69101/A6794-60101 LAN/SCSI core I/O PCI board (Procurium)
A9891A HP Ultra320 SCSI PCI-X RAID smart array controller - 256MB cache memory, 64-bit, 133MHz, 31.2 x 10.7 x 1.8cm (12.3 x 4.2 x .7in), 4 channels
A9903A Pedestal configuration kit - Includes parts needed to convert from rack mount to pedestal
AB227A Reflection terminal emulation software (CD-ROM)
AB300A HP9000 and Integrity server console - Includes T5500 Thin Client, S5500 monitor, keyboard, mouse, and power cord
B8484A HP-UX 11i enterprise operating environment for Integrity servers per-processor license-to-use
B8485AC HP-UX 11i mission-critical operating environment for Integrity servers per-processor license-to-use
B9429AC HP-UX 11i foundation operating environment for Integrity servers per-processor license-to-use
T1900AC HP-UX 11i technical computing operating environment for Integrity servers per-processor license-to-use
T2372A Microsoft Windows Server 2003 Datacenter Edition
T2373A Windows Server 2003 License To Use (LTU) Enterprise Edition
T2387AA HP Enablement kit for Linux
T2744AA Red Hat Enterprise Linux AS 3 LTU
T2747AA SUSE LINUX Enterprise Server 9 LTU
