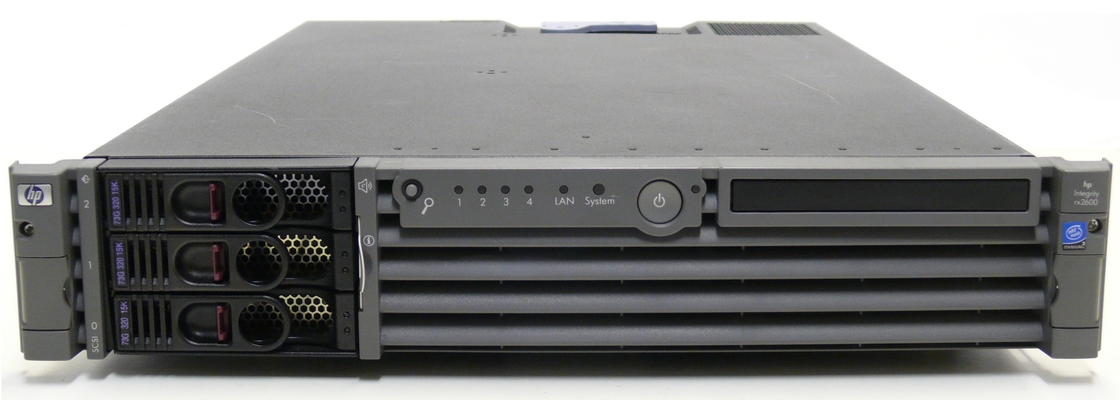

HP Itanium Server RX2600 (1.4GHz) AB324A

HP Itanium Server RX2600 (1.4GHz) AB324A

large.img.alt
small.img.alt

Large Image :  HP Itanium Server RX2600 (1.4GHz) AB324A Get Best Price

Product Details:
Place of Origin: USA
Brand Name: HP
Certification: HP Certificated
Model Number: HP Itanium Server RX2600 (1.4GHz) AB324A
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Contact us
Packaging Details: Sealed Retail Box
Delivery Time: 1-2 Days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000PCS/Month
Detailed Product Description
Name: HP Itanium Server RX2600 (1.4GHz) AB324A Status: Stock
Area: Global Express: DHL EMS FEDEX
High Light:

1.4GHz HP RX2600 rack mount server

,

1.4GHz HP RX2600

,

1.4GHz RX2600 HP Server Accessories

HP Itanium Server RX2600 (1.4GHz) AB324A

component parts for the RX2600 AB324A

Part Number Description
CPU
A7231-69130 Intel Itanium 2 processor - 1.0GHz (McKinley, 400MHz front side bus, 3.0MB Level-3 cache) - Mounts on the system processor board
A7231-69139 Intel Itanium 2 processor - 900MHz (McKinley, 400MHz front side bus, 1.5MB Level-3 cache)
A7845A Intel Itanium 2 processor upgrade - Includes one 900MHz (200MHz front side bus, 1.5MB cache) processor
A7848A Intel Itanium 2 processor upgrade - Includes one 1.0GHz (200MHz front side bus, 3MB cache)
Processor Board
A6875A Management processor board - For controlling the system console, reset and power management functions - Includes SIO (remote, console and UPS), VGA and LAN connectors - NOT supported in tower configurations
A7231-69512 System processor board (Does NOT include the processor or processor power module)
AB587-60002 Management processor board - For controlling the system console, reset and power management functions - Includes SIO (remote, console and UPS), VGA and LAN connectors
AB587-60004 PCI backplane/riser board - Has four PCI slots
Memory
A6967AX 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module
A7840A 512MB DDR-SDRAM memory upgrade kit - Includes two 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
A7841A 1.0GB DDR-SDRAM memory upgrade kit - Includes two 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
A7842A 2.0GB DDR-SDRAM memory upgrade kit - Includes two 1.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules
Hard Drive
A6980A 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6980AR 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6981A 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile
A6981AR 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile
A6982A 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A6982AR 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector
A7835-69005 36GB hot-plug Ultra320 Wide SCSI Low Voltage Differential (LVD) hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector
A7835A 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector
A7835AR 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector
A7836A 36GB hot-plug Ultra320 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector
A7836AR 36GB hot-plug Ultra320 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector
A7837A 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector
A7837AR 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector
AB420-69001/AB420-67001 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high
Backplane Board
AB587-60005 SCSI backplane board - Has three connectors for hot-swap hard drives
SCSI
A5159-69001 Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system
A5159A Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system
A6828A Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system
A6828AR Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system
A6829A/A6829-60101 Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system
A6829AR Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system
Ethernet
5185-8203 FireWire (IEEE-1394A) adapter - 3-port
A5506B 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al
A6847A 1000base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system
A8084A FireWire (IEEE-1394A) adapter - 3-port
A8685A 1000base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector - Requires one PCI slot - For HP-UX operating system
AB545-60001 1000base-TX LAN four port host adapter board - Supports all PCI bus configurations - Has four RJ-45 connectors - Requires one PCI slot - For HP-UX operating system
B5509-66001 100base-TX LAN host adapter board with one RJ-45 port - Requires one PCI slot - Includes the board, software, software license, and installation instructions - For HP-UX operating system
B5509BA 100base-TX LAN host adapter board with one RJ-45 port - Requires one PCI slot - Includes the board, software, software license, and installation instructions - For HP-UX operating system
P3492-63000 10/100base-T PCI network interface card with IPSec (3DES) - For Windows and Linux based systems
P3492A 10/100base-T IPSec (3DES) LAN host adapter board - With one RJ-45 connector - Reqires one PCI slot - For Windows and Linux operating systems
Adapter
A7784A Audio sound card - Provides 16-bit stereo mic in, headphone out, line in, line out - Requires one PCI slot Includes the audio card, stereo headphones, and internal audio cable - For Windows or HP-UX operating systems - For HP-UX operating system
AB620-60503 Audio sound card - Provides 16-bit stereo mic in, headphone out, line in, line out - Requires one PCI slot - For HP-UX operating system
Graphics
A7226-69520 ATI FireGL4 graphics card - Extreme 3D graphics board with 128MB DDR SDRAM memory, 300MHz/30-bit palette RAMDAC, Dual DVI-I digital dispay outputs, and one 3-pin mini DIN stereo output - Requires one AGP and one adjacent PCI slot
A7226A ATI FireGL4 graphics card - Extreme 3D graphics board with 128MB DDR SDRAM memory, 300MHz/30-bit palette RAMDAC, Dual DVI-I digital dispay outputs, and one 3-pin mini DIN stereo output - Requires one AGP and one adjacent PCI slot - For Windows and HP-UX
A7806-69510 NVIDIA Quadro2 EX graphics card (NV11GL based) - Entry 3D graphics board with 32MB SDR SDRAM, 350MHz RAMDAC, and one DB-15 analog monitor output - Requires one APG slot
A7806A NVIDIA Quadro2 EX graphics card (NV11GL based) - Entry 3D graphics board with 32MB SDR SDRAM, 350MHz RAMDAC, and one DB-15 analog monitor output - Requires one APG Slot - For Windows and Linux operating systems
A8049-60520 ATI RADEON 7000 2D graphics card - Professional 2D graphics board with 32MB DDR SDRAM memory, 300MHz RAMDAC, one analog monitor output, and one DVI-I analog/digital dispay output - Requires one AGP slot
A8049A ATI RADEON 7000 2D graphics card - Professional 2D graphics board with 32MB DDR SDRAM memory, 300MHz RAMDAC, one analog monitor output, and one DVI-I analog/digital dispay output - Requires one AGP slot
A8064-69520 NVIDIA Quadro4 900 XGL AGP 4X graphics card (NV25GL based) - High-end 3D graphics board with 128MB DDR SDRAM, Dual 350MHz RAMDAC, and Two DVI-I analog/digital output - Requires one APG slot - For Windows and Linux operating systems
A8064A NVIDIA Quadro4 900 XGL AGP 4X graphics card (NV25GL based) - High-end 3D graphics board with 128MB DDR SDRAM, Dual 350MHz RAMDAC, and Two DVI-I analog/digital output - Requires one APG Slot - For Windows and Linux operating systems
Power
0950-4530 Processor power supply (or module) - DC to DC converter module with power supply cable (12V DC in, 1.5V DC at 100A nominal
0950-4621 Hot-swap redundant power supply - 650W
A6874A HP Hot-Swap Redundant Power Supply (rx2600)- 650W
DVD
A6985A Slimline DVD-ROM drive (Gray) - 8X DVD-ROM read, 24X CD-ROM read
A6986-69001 IDE slim form CD-RW/DVD-ROM combination drive (Flint Gray) - 12X-max write, 8X-max rewrite, 24X-max read CD, 8X-max read DVD
A6986A Slimline DVD-ROM/CD-RW drive (Gray) - 12X CD-R write, 8X CD-RW re-write, 24X CD-ROM read, 8X DVD-ROM read
A7231-69011 8x-max read DVD, 24x-max read CD-ROM IDE slim form factor DVD-ROM drive (Gray)
A7231-69024 Slimline DVD-ROM/CD-RW combination drive (Carbon Black) - 12X CD-R write, 8X CD-RW re-write, 24X read CD-ROM, 8X read DVD-ROM
A7850A IDE DVD-ROM drive - 8X-max read DVD, 24X-max read CD-ROM, slimline form factor - With Carbon Black faceplate
A7851A IDE CD-RW/DVD-ROM drive - 12X-max write, 8x-max re-write, 8X-max read DVD, 24X-max read CD-ROM, slimline form factor -With Carbon Black faceplate
A9919-67001/A7231-62012 Slimline DVD-ROM drive (Carbon Black) - 8X read DVD-ROM, 24X read CD-ROM
Fan
A7231-04014 Super 80mm tubeaxial fan
A7231-04015 Thin 80mm fan - For use in tower configuration
A7231-04017 Standard 80mm fan
A7231-04034 Main airflow guide (plastic)
A7231-04058 Super 80mm tubeaxial fan
A7231-04059 80mm dual fan
A7231-04060 Thin 80mm fan
Rack
A6939A Field rack mount kit - For field integration into 19-inch wide cabinets at customer location - Includes rails and bezel
Cable
8120-1378 Power cor(Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
A6064-63001 Converter dongle - Short cable with a (M) DVI-I connector and a (F) 15-pin VGA connector - For connecting a VGA monitor to a DVI-I port on the graphics card
A6144-63001/A6144-63007/A6144-63019 Management processor M-cable
A7231-04018 Power supply interface cable (module) assembly - Includes the dual power supply interface connector, the low voltage cables, and the two internal power cables terminated with line filter/power recptacle assemblies
A7231-63002 Data cable - For IDE CD-ROM/DVD drive - Connects between the CD-ROM/DVD drive and the system processor board
A7231-63026 Data cable - For IDE CD-ROM/DVD drive
A7231-63028 Hard drive power cable
A7231-63029 Y-cable assembly for super-80mm fan - 6-wire (three per connector) fan cable
A7231-63030 Y-cable assembly for 80mm fan - 12-wire (three per connector) fan cable
A7231-63032 Flex cable - For the management processor card
A7231-63038 SCSI cable A-channel - Has one connector at each end
A7231-63039 SCSI cable B-channel - Has one connector at each end
Cabinet
A7231-00072 ECI cover plate - Gray metal plate approximately 1.0-inches wide by 6.75-inches long
A7231-04026 Deskside front bezel assembly (Flint Gray)
A7231-04071 Main cover (Carbon Black) - metal cover with blue-colored release handle
A7231-40021 Deskside top cover
Other
A6198-60003 Hot-swap hard drive slot filler panel (Carbon Black)
A6198-67002 Filler panel - Used to cover an empty hard drive slot
A6940A Pedestal configuration kit - Includes pedestal, front bezel, top cover, side cover, and nameplate - For converting the rack mount server into a deskside pedestal configuration
A7231-04004 Fan cage assembly (metal) - Front half of the processor airflow system
A7231-04025 Right side bezel for rack configurations (Flint Gray)
A7231-04030 Left side bezel for rack configurations with latch (Flint Gray)
A7231-04072 PCI/AGP card cage - Includes the metal frame and cover (PC board NOT included)
A7231-40003 Rack nameplate (Quatrz Gray)
A7231-40025 Deskside nameplate (Flint Gray)
A7231-40026 Slimline optical drive bay filler panel (Gray plastic)
A7231-67046 2.5mm hex tool - For removing or installing a replacement processor/heatsink assembly
AB587-60006 Status panel PC board - Includes the system status LED`s and power switch on a small PC board RoHS: Modified
