HP Itanium Server RX2600 (900MHz) A7053A
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | HP Itanium Server RX2600 (900MHz) A7053A | Status: | Stock |
|---|---|---|---|
| Area: | Global | Express: | DHL EMS FEDEX |
| High Light: | A7053A 900MHz HP computer server,900MHz RX2600 HP computer server,900MHz HP RX2600 |
||

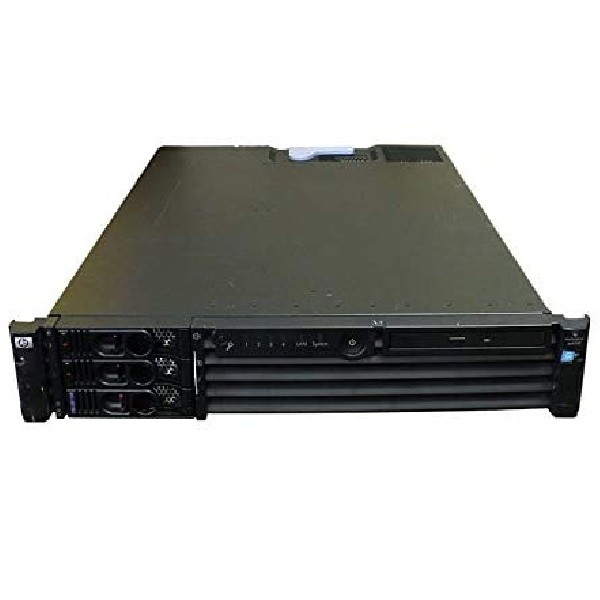

HP Itanium Server RX2600 (900MHz) A7053A
component parts for the RX2600 A7053A
| Part Number | Description |
| CPU | |
| A7231-69130 | Intel Itanium 2 processor - 1.0GHz (McKinley, 400MHz front side bus, 3.0MB Level-3 cache) - Mounts on the system processor board |
| A7231-69139 | Intel Itanium 2 processor - 900MHz (McKinley, 400MHz front side bus, 1.5MB Level-3 cache) |
| A7845A | Intel Itanium 2 processor upgrade - Includes one 900MHz (200MHz front side bus, 1.5MB cache) processor |
| A7848A | Intel Itanium 2 processor upgrade - Includes one 1.0GHz (200MHz front side bus, 3MB cache) |
| Processor Board | |
| A6875A | Management processor board - For controlling the system console, reset and power management functions - Includes SIO (remote, console and UPS), VGA and LAN connectors - NOT supported in tower configurations |
| A7231-69512 | System processor board (Does NOT include the processor or processor power module) |
| AB587-60002 | Management processor board - For controlling the system console, reset and power management functions - Includes SIO (remote, console and UPS), VGA and LAN connectors |
| AB587-60004 | PCI backplane/riser board - Has four PCI slots |
| Memory | |
| A6967AX | 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory module |
| A7840A | 512MB DDR-SDRAM memory upgrade kit - Includes two 256MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| A7841A | 1.0GB DDR-SDRAM memory upgrade kit - Includes two 512MB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| A7842A | 2.0GB DDR-SDRAM memory upgrade kit - Includes two 1.0GB, 266MHz, PC2100, non-ECC DDR-SDRAM DIMM memory modules |
| Hard Drive | |
| A6980A | 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector |
| A6980AR | 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector |
| A6981A | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile |
| A6981AR | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive - 15,000 RPM, low profile |
| A6982A | 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector |
| A6982AR | 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive - 10,000 RPM, low profile, 80-pin SCA connector |
| A7835-69005 | 36GB hot-plug Ultra320 Wide SCSI Low Voltage Differential (LVD) hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A7835A | 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A7835AR | 36GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A7836A | 36GB hot-plug Ultra320 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A7836AR | 36GB hot-plug Ultra320 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A7837A | 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| A7837AR | 73GB hot-plug Ultra160 Wide Low Voltage Differential (LVD) SCSI hard drive (Carbon Black) - 10,000 RPM, 3.5-inch form factor, 1.0-inch high, 80-pin SCA connector |
| AB420-69001/AB420-67001 | 36GB hot-plug Ultra320 Low Voltage Differential (LVD) SCSI hard drive (Carbon Black and Port) - 15,000 RPM, 3.5-inch form factor, 1.0-inch high |
| Backplane Board | |
| AB587-60005 | SCSI backplane board - Has three connectors for hot-swap hard drives |
| SCSI | |
| A5159-69001 | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system |
| A5159A | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system |
| A6828A | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system |
| A6828AR | Single channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 15 devices - Has one 68-pin very high density external connector, and one 68-pin high density internal connector - For HP-UX operating system |
| A6829A/A6829-60101 | Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| A6829AR | Dual channel Ultra160 LVD SCSI adapter board - Compliant with SCSI SPI-3, supports up to 30 devices - Has two 68-pin very high density external connectors, and two 68-pin high density internal connectors - For HP-UX operating system |
| Ethernet | |
| 5185-8203 | FireWire (IEEE-1394A) adapter - 3-port |
| A5506B | 100base-TX LAN four port host adapter board (Supports all PCI bus configurations) - Has four RJ-45 connectors - Require one 64-bit PCI slot - For HP-UX operating system - LAN Adapter - 4 port 100base-TX PCI LAN adapter - Has four RJ-45 ports - Supports al |
| A6847A | 1000base-SX Gigabit Ethernet network interface adapter board - Has one duplex fiber optic connector, requires one 64-bit PCI slot - For HP-UX operating system |
| A8084A | FireWire (IEEE-1394A) adapter - 3-port |
| A8685A | 1000base-T Gigabit Ethernet network interface adapter board - Has one RJ-45 connector - Requires one PCI slot - For HP-UX operating system |
| AB545-60001 | 1000base-TX LAN four port host adapter board - Supports all PCI bus configurations - Has four RJ-45 connectors - Requires one PCI slot - For HP-UX operating system |
| B5509-66001 | 100base-TX LAN host adapter board with one RJ-45 port - Requires one PCI slot - Includes the board, software, software license, and installation instructions - For HP-UX operating system |
| B5509BA | 100base-TX LAN host adapter board with one RJ-45 port - Requires one PCI slot - Includes the board, software, software license, and installation instructions - For HP-UX operating system |
| P3492-63000 | 10/100base-T PCI network interface card with IPSec (3DES) - For Windows and Linux based systems |
| P3492A | 10/100base-T IPSec (3DES) LAN host adapter board - With one RJ-45 connector - Reqires one PCI slot - For Windows and Linux operating systems |
| Adapter | |
| A7784A | Audio sound card - Provides 16-bit stereo mic in, headphone out, line in, line out - Requires one PCI slot Includes the audio card, stereo headphones, and internal audio cable - For Windows or HP-UX operating systems - For HP-UX operating system |
| AB620-60503 | Audio sound card - Provides 16-bit stereo mic in, headphone out, line in, line out - Requires one PCI slot - For HP-UX operating system |
| Graphics | |
| A7226-69520 | ATI FireGL4 graphics card - Extreme 3D graphics board with 128MB DDR SDRAM memory, 300MHz/30-bit palette RAMDAC, Dual DVI-I digital dispay outputs, and one 3-pin mini DIN stereo output - Requires one AGP and one adjacent PCI slot |
| A7226A | ATI FireGL4 graphics card - Extreme 3D graphics board with 128MB DDR SDRAM memory, 300MHz/30-bit palette RAMDAC, Dual DVI-I digital dispay outputs, and one 3-pin mini DIN stereo output - Requires one AGP and one adjacent PCI slot - For Windows and HP-UX |
| A7806-69510 | NVIDIA Quadro2 EX graphics card (NV11GL based) - Entry 3D graphics board with 32MB SDR SDRAM, 350MHz RAMDAC, and one DB-15 analog monitor output - Requires one APG slot |
| A7806A | NVIDIA Quadro2 EX graphics card (NV11GL based) - Entry 3D graphics board with 32MB SDR SDRAM, 350MHz RAMDAC, and one DB-15 analog monitor output - Requires one APG Slot - For Windows and Linux operating systems |
| A8049-60520 | ATI RADEON 7000 2D graphics card - Professional 2D graphics board with 32MB DDR SDRAM memory, 300MHz RAMDAC, one analog monitor output, and one DVI-I analog/digital dispay output - Requires one AGP slot |
| A8049A | ATI RADEON 7000 2D graphics card - Professional 2D graphics board with 32MB DDR SDRAM memory, 300MHz RAMDAC, one analog monitor output, and one DVI-I analog/digital dispay output - Requires one AGP slot |
| A8064-69520 | NVIDIA Quadro4 900 XGL AGP 4X graphics card (NV25GL based) - High-end 3D graphics board with 128MB DDR SDRAM, Dual 350MHz RAMDAC, and Two DVI-I analog/digital output - Requires one APG slot - For Windows and Linux operating systems |
| A8064A | NVIDIA Quadro4 900 XGL AGP 4X graphics card (NV25GL based) - High-end 3D graphics board with 128MB DDR SDRAM, Dual 350MHz RAMDAC, and Two DVI-I analog/digital output - Requires one APG Slot - For Windows and Linux operating systems |
| Power | |
| 0950-4530 | Processor power supply (or module) - DC to DC converter module with power supply cable (12V DC in, 1.5V DC at 100A nominal |
| 0950-4621 | Hot-swap redundant power supply - 650W |
| A6874A | HP Hot-Swap Redundant Power Supply (rx2600)- 650W |
| DVD | |
| A6985A | Slimline DVD-ROM drive (Gray) - 8X DVD-ROM read, 24X CD-ROM read |
| A6986-69001 | IDE slim form CD-RW/DVD-ROM combination drive (Flint Gray) - 12X-max write, 8X-max rewrite, 24X-max read CD, 8X-max read DVD |
| A6986A | Slimline DVD-ROM/CD-RW drive (Gray) - 12X CD-R write, 8X CD-RW re-write, 24X CD-ROM read, 8X DVD-ROM read |
| A7231-69011 | 8x-max read DVD, 24x-max read CD-ROM IDE slim form factor DVD-ROM drive (Gray) |
| A7231-69024 | Slimline DVD-ROM/CD-RW combination drive (Carbon Black) - 12X CD-R write, 8X CD-RW re-write, 24X read CD-ROM, 8X read DVD-ROM |
| A7850A | IDE DVD-ROM drive - 8X-max read DVD, 24X-max read CD-ROM, slimline form factor - With Carbon Black faceplate |
| A7851A | IDE CD-RW/DVD-ROM drive - 12X-max write, 8x-max re-write, 8X-max read DVD, 24X-max read CD-ROM, slimline form factor -With Carbon Black faceplate |
| A9919-67001/A7231-62012 | Slimline DVD-ROM drive (Carbon Black) - 8X read DVD-ROM, 24X read CD-ROM |
| Fan | |
| A7231-04014 | Super 80mm tubeaxial fan |
| A7231-04015 | Thin 80mm fan - For use in tower configuration |
| A7231-04017 | Standard 80mm fan |
| A7231-04034 | Main airflow guide (plastic) |
| A7231-04058 | Super 80mm tubeaxial fan |
| A7231-04059 | 80mm dual fan |
| A7231-04060 | Thin 80mm fan |
| Rack | |
| A6939A | Field rack mount kit - For field integration into 19-inch wide cabinets at customer location - Includes rails and bezel |
| Cable | |
| 8120-1378 | Power cor(Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) C13 receptacle (for 120V in USA, Canada, Latin America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam) |
| A6064-63001 | Converter dongle - Short cable with a (M) DVI-I connector and a (F) 15-pin VGA connector - For connecting a VGA monitor to a DVI-I port on the graphics card |
| A6144-63001/A6144-63007/A6144-63019 | Management processor M-cable |
| A7231-04018 | Power supply interface cable (module) assembly - Includes the dual power supply interface connector, the low voltage cables, and the two internal power cables terminated with line filter/power recptacle assemblies |
| A7231-63002 | Data cable - For IDE CD-ROM/DVD drive - Connects between the CD-ROM/DVD drive and the system processor board |
| A7231-63026 | Data cable - For IDE CD-ROM/DVD drive |
| A7231-63028 | Hard drive power cable |
| A7231-63029 | Y-cable assembly for super-80mm fan - 6-wire (three per connector) fan cable |
| A7231-63030 | Y-cable assembly for 80mm fan - 12-wire (three per connector) fan cable |
| A7231-63032 | Flex cable - For the management processor card |
| A7231-63038 | SCSI cable A-channel - Has one connector at each end |
| A7231-63039 | SCSI cable B-channel - Has one connector at each end |
| Cabinet | |
| A7231-00072 | ECI cover plate - Gray metal plate approximately 1.0-inches wide by 6.75-inches long |
| A7231-04026 | Deskside front bezel assembly (Flint Gray) |
| A7231-04071 | Main cover (Carbon Black) - metal cover with blue-colored release handle |
| A7231-40021 | Deskside top cover |
| Other | |
| A6198-60003 | Hot-swap hard drive slot filler panel (Carbon Black) |
| A6198-67002 | Filler panel - Used to cover an empty hard drive slot |
| A6940A | Pedestal configuration kit - Includes pedestal, front bezel, top cover, side cover, and nameplate - For converting the rack mount server into a deskside pedestal configuration |
| A7231-04004 | Fan cage assembly (metal) - Front half of the processor airflow system |
| A7231-04025 | Right side bezel for rack configurations (Flint Gray) |
| A7231-04030 | Left side bezel for rack configurations with latch (Flint Gray) |
| A7231-04072 | PCI/AGP card cage - Includes the metal frame and cover (PC board NOT included) |
| A7231-40003 | Rack nameplate (Quatrz Gray) |
| A7231-40025 | Deskside nameplate (Flint Gray) |
| A7231-40026 | Slimline optical drive bay filler panel (Gray plastic) |
| A7231-67046 | 2.5mm hex tool - For removing or installing a replacement processor/heatsink assembly |
| AB587-60006 | Status panel PC board - Includes the system status LED`s and power switch on a small PC board RoHS: Modified |
