Product Details:
Payment & Shipping Terms:
|

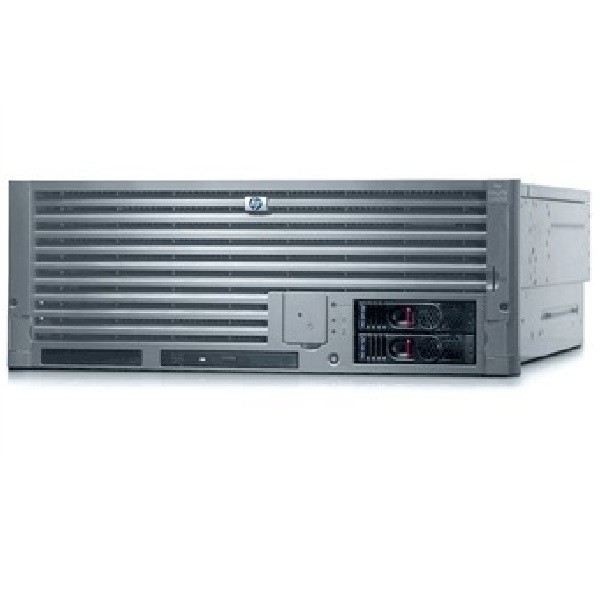

Name: | HP Itanium Server RX4610-4 - Two Way 733MHz A6153AR | Status: | Stock |
---|---|---|---|
Area: | Global | Express: | DHL EMS FEDEX |
Part Number | Description |
CPU | |
A6153-69001 | Processor board - Has two processor and power pod connectors on each side |
A6165-69002 | Intel Itanium processor - 733MHz (Merced, 266MHz front side bus, 2MB Level-3 cache) |
A6165A | Intel Itanium processor upgrade - 733MHz (2MB L3 cache) |
A6448-69002 | Intel Itanium processor - 800MHz (Merced, 266MHz front side bus, 4MB Level-3 cache) |
A6448A | Intel Itanium processor upgrade - 800MHz (4MB L3 cache) |
Memory | |
A6168-67001/A6168-69001 | 256MB ECC SDRAM DIMM memory module - Must be installed in sets of four |
A6168A | 1024MB ECC DIMM high density SyncDRAM memory upgrade kit - Includes four 256MB DIMM modules |
A6169-67001/A6169-69001 | 512MB ECC SDRAM DIMM memory module - Must be installed in sets of four |
A6169A | 2048MB ECC high density SyncDRAM memory upgrade kit - Includes four 512MB DIMM modules |
A6170-67001A6170-69001 | 1.0GB ECC SDRAM DIMM memory module - Must be installed in sets of four |
A6170A | 4096MB ECC DIMM high density SyncDRAM memory upgrade kit - Includes four 1024MB DIMM modules |
Hard Drive | |
A6153-67029 | LS-120 Superdisk drive assembly - Reads 120MB LS-120 disks and 1.44MB floppy disks - Includes the drive mounted on a tray with connector board |
A6171-69001 | 36GB Ultra160 SCSI hot-swap hard drive assembly - Includes one 7200 RPM Ultra160 LVD SE SCA SCSI hard drive (Quantum Atlas V), mounted on low profile hot-swap tray |
A6171A | 36GB Ultra3 SCSI hot-swap hard drive assembly - Includes one 7200 RPM hard drive mounted on hot-swap tray |
SCSI | |
A5150A | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
A5150AR | Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors |
A5159A | Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system |
Ethernet | |
A4926A | LAN adapter - 1000base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
A4929A | LAN adapter - 1000base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations |
A6792A | LAN Adapter - 10/100base-TX PCI ethernet LAN adapter |
Fibre | |
A5158A | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
A5158AR | 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors |
Power | |
A6153-69031 | Hot-swap redundant power supply - 100/240VAC autorange, 50/60Hz, 700/800W |
DVD | |
A6153-67030 | DVD-Rom Drive Assembly |
Fan | |
A6153-67032 | 172mm hot-swap fan assembly |
A6153-67033 | 120mm hot-swap fan assembly |
Rack | |
A6153-67047 | Rack mount rail kit |
A6383A | Field rack mount kit for mounting in 19in wide Rack System/E |
A6383AZ | Factory rack mount kit |
Cable | |
A6153-67012 | Power supply Y cable for the processor power pod |
A6153-67013 | DVD-ROM drive ATA IDE cable - One connector at each end |
A6153-67014 | LS-120 Superdrive data cable |
A6153-67015 | Internal SCSI cable (twisted pair) - 68-pin high density connectors on each end, 12.7cm (5in) long |
A6153-67016 | Server management cable - 60-pin ribbon cable 63.5cm (25in) |
A6153-67017 | 172mm fan power cable - Services both fans |
A6153-67018 | 120mm hot-swap fan power cable |
A6153-67019 | Internal power cable |
A6153-67020 | Front control panel cable |
A6153-67021 | External SCSI cable (twisted pair) - 68-pin high density internal end and a 68-pin very high density external connector on the other end |
A6153-67022 | Hot-plug interface cable for the hot-plug PCI board - 40-pin, 40.6cm (16in) long |
A6153-67023 | AC inlet cable (left side) - Provides power cord recepticle on the back of the chassis |
A6153-67024 | AC inlet cable (right side) - Provides power cord recepticle on the back of the chassis |
A6153-67025 | Power cord |
Other | |
A6153-10005 | Diagnostics and utilities CD-ROM |
A6153-67003 | LS-120 Superdrive connector board - Has IDE cable and power connectors on one side and drive connector on the other side |
A6153-67004 |
Hot-swap SCSI backplane - Has two SCA connectors for hot-swap hard drives and a connector for the front panel cable - Hot-swap SCSI backplane - Mounts on the back of the hot-swap bay - Has two SCA connectors for hot-swap hard drives and a connector for th
|
A6153-67005 | DVD-ROM drive connector board - Has IDE and power connectors |
A6153-67007 | Front display panel board - Has status LEDs and buttons |
A6153-67011 | Hot-plug PCI board |
A6153-67027 | 3.3V DC to DC power converter |
A6153-67036 | 5V DC to DC power converter |
A6153-67041 | Rocker switch - Plastic hot-plug switch on the back of the server - Activates the PCI slot and holds the card in place |
A6153-67042 | I/O card guide - Black plastic card guide with locking tab for securing a PCI card |
A6153-67043 | /O baseboard cover - Transparent plastic cover for the I/O baseboard |
A6153-67044 | PCI card plastic divider |
A6153-67045 | Processor thermal dummy - Must be installed in an empty processor slot for proper cooling |
A6153-67052 | Front bezel |
A6153-67053 | Thermal sheet metal kit - Includes a power supply filler panel, processor air flow baffle, and a DC to DC converter module cover |
A6153-67055 | Front handles kit - Includes two front handles and screws |
A6153-69002 | Memory board - Has 32 DIMM slots |
A6153-69006 | Power distribution board (T-dock) - Has 68-pin SCSI connector and power supply connectors |
A6153-69008 | Sideplane board - Has slots for 3.3V and 5V DC to DC power converters and other system boards |
A6153-69009 | Legacy I/O board - Has two internal IDE device connectors and external parallel, USB, keyboard and mouse, and two serial connectors |
A6153-69010 |
I/O baseboard - Has 10 PCI slots (eight slots are 66MHz/64-bit hot plug and two slots are 33MHz/64-bit non-hot plug) - I/O baseboard - Has 10 PCI slots (eight slots are 66MHz/64-bit hot plug and two slots are 33MHz/64-bit non-hot plug) - Mounts on metal t
|
A6153-69028 | 12V DC to DC power converter |
A6165-69040 | Processor power pod - 48V DC to DC converter power pod - One required for each processor |
C3751B | 2 button PS/2 serial mouse (Quartz Gray) - Has attached 6ft cable with 6-pin mini-din connector |
