HP Itanium Server RX4610-4 - Two way 800MHz P7673AR

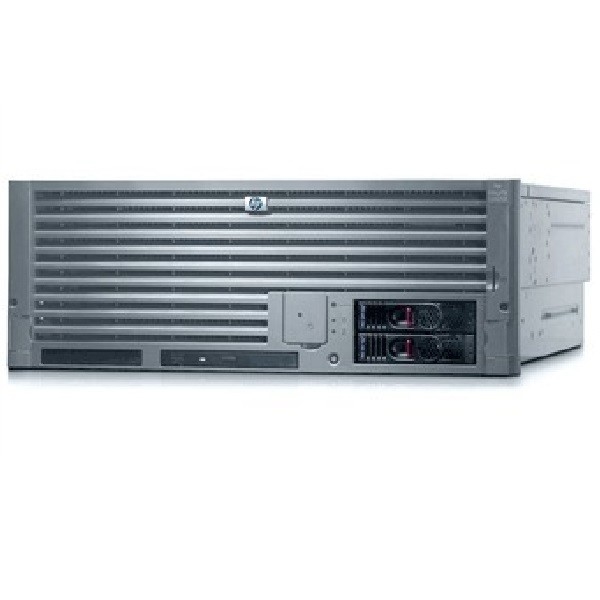

HP Itanium Server RX4610-4 - Two way 800MHz P7673AR

large.img.alt
small.img.alt

Large Image :  HP Itanium Server RX4610-4 - Two way 800MHz P7673AR Get Best Price

Product Details:
Place of Origin: USA
Brand Name: HP
Certification: HP Certificated
Model Number: HP Itanium Server RX4610-4 - Two way 800MHz P7673AR
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Contact us
Packaging Details: Sealed Retail Box
Delivery Time: 1-2 Days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000PCS/Month
Detailed Product Description
Name: HP Itanium Server RX4610-4 - Two Way 800MHz P7673AR Status: Stock
Area: Global Express: DHL EMS FEDEX
High Light:

RX4610-4 HP Itanium Server

,

RX4610-4 Two way Server

,

800MHz P7673AR HP Itanium Server

HP Itanium Server RX4610-4 - Two way 800MHz P7673AR

component parts for the RX4610 P763AR

Part Number Description
CPU
A6153-69001 Processor board - Has two processor and power pod connectors on each side
A6165-69002 Intel Itanium processor - 733MHz (Merced, 266MHz front side bus, 2MB Level-3 cache)
A6165A Intel Itanium processor upgrade - 733MHz (2MB L3 cache)
A6448-69002 Intel Itanium processor - 800MHz (Merced, 266MHz front side bus, 4MB Level-3 cache)
A6448A Intel Itanium processor upgrade - 800MHz (4MB L3 cache)
Memory
A6168-67001/A6168-69001 256MB ECC SDRAM DIMM memory module - Must be installed in sets of four
A6168A 1024MB ECC DIMM high density SyncDRAM memory upgrade kit - Includes four 256MB DIMM modules
A6169-67001/A6169-69001 512MB ECC SDRAM DIMM memory module - Must be installed in sets of four
A6169A 2048MB ECC high density SyncDRAM memory upgrade kit - Includes four 512MB DIMM modules
A6170-67001A6170-69001 1.0GB ECC SDRAM DIMM memory module - Must be installed in sets of four
A6170A 4096MB ECC DIMM high density SyncDRAM memory upgrade kit - Includes four 1024MB DIMM modules
Hard Drive
A6153-67029 LS-120 Superdisk drive assembly - Reads 120MB LS-120 disks and 1.44MB floppy disks - Includes the drive mounted on a tray with connector board
A6171-69001 36GB Ultra160 SCSI hot-swap hard drive assembly - Includes one 7200 RPM Ultra160 LVD SE SCA SCSI hard drive (Quantum Atlas V), mounted on low profile hot-swap tray
A6171A 36GB Ultra3 SCSI hot-swap hard drive assembly - Includes one 7200 RPM hard drive mounted on hot-swap tray
SCSI
A5150A Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors
A5150AR Dual port PCI Ultra2 low voltage differential SCSI adapter - Has two external very high density 68 pin connectors and two internal high density 68 pin connectors
A5159A Dual port PCI Fast Wide High Voltage Differential SCSI-3 adapter - Has two external very high density 68-pin connectors and two internal high density 68-pin connectors - For HP-UX operating system
Ethernet
A4926A LAN adapter - 1000base-SX PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations
A4929A LAN adapter - 1000base-T PCI Gigabit Ethernet LAN adapter - Supports all PCI bus configurations
A6792A LAN Adapter - 10/100base-TX PCI ethernet LAN adapter
Fibre
A5158A 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors
A5158AR 1Gbps Tachyon TL PCI 2x Fiber Channel (FC) adapter - Single channel, short wave - Has SC connectors
Power
A6153-69031 Hot-swap redundant power supply - 100/240VAC autorange, 50/60Hz, 700/800W
DVD
A6153-67030 DVD-Rom Drive Assembly
Fan
A6153-67032 172mm hot-swap fan assembly
A6153-67033 120mm hot-swap fan assembly
Rack
A6153-67047 Rack mount rail kit
A6383A Field rack mount kit for mounting in 19in wide Rack System/E
A6383AZ Factory rack mount kit
Cable
A6153-67012 Power supply Y cable for the processor power pod
A6153-67013 DVD-ROM drive ATA IDE cable - One connector at each end
A6153-67014 LS-120 Superdrive data cable
A6153-67015 Internal SCSI cable (twisted pair) - 68-pin high density connectors on each end, 12.7cm (5in) long
A6153-67016 Server management cable - 60-pin ribbon cable 63.5cm (25in)
A6153-67017 172mm fan power cable - Services both fans
A6153-67018 120mm hot-swap fan power cable
A6153-67019 Internal power cable
A6153-67020 Front control panel cable
A6153-67021 External SCSI cable (twisted pair) - 68-pin high density internal end and a 68-pin very high density external connector on the other end
A6153-67022 Hot-plug interface cable for the hot-plug PCI board - 40-pin, 40.6cm (16in) long
A6153-67023 AC inlet cable (left side) - Provides power cord recepticle on the back of the chassis
A6153-67024 AC inlet cable (right side) - Provides power cord recepticle on the back of the chassis
A6153-67025 Power cord
Other
A6153-10005 Diagnostics and utilities CD-ROM
A6153-67003 LS-120 Superdrive connector board - Has IDE cable and power connectors on one side and drive connector on the other side
A6153-67004 Hot-swap SCSI backplane - Has two SCA connectors for hot-swap hard drives and a connector for the front panel cable - Hot-swap SCSI backplane - Mounts on the back of the hot-swap bay - Has two SCA connectors for hot-swap hard drives and a connector for th
A6153-67005 DVD-ROM drive connector board - Has IDE and power connectors
A6153-67007 Front display panel board - Has status LEDs and buttons
A6153-67011 Hot-plug PCI board
A6153-67027 3.3V DC to DC power converter
A6153-67036 5V DC to DC power converter
A6153-67041 Rocker switch - Plastic hot-plug switch on the back of the server - Activates the PCI slot and holds the card in place
A6153-67042 I/O card guide - Black plastic card guide with locking tab for securing a PCI card
A6153-67043 /O baseboard cover - Transparent plastic cover for the I/O baseboard
A6153-67044 PCI card plastic divider
A6153-67045 Processor thermal dummy - Must be installed in an empty processor slot for proper cooling
A6153-67052 Front bezel
A6153-67053 Thermal sheet metal kit - Includes a power supply filler panel, processor air flow baffle, and a DC to DC converter module cover
A6153-67055 Front handles kit - Includes two front handles and screws
A6153-69002 Memory board - Has 32 DIMM slots
A6153-69006 Power distribution board (T-dock) - Has 68-pin SCSI connector and power supply connectors
A6153-69008 Sideplane board - Has slots for 3.3V and 5V DC to DC power converters and other system boards
A6153-69009 Legacy I/O board - Has two internal IDE device connectors and external parallel, USB, keyboard and mouse, and two serial connectors
A6153-69010 I/O baseboard - Has 10 PCI slots (eight slots are 66MHz/64-bit hot plug and two slots are 33MHz/64-bit non-hot plug) - I/O baseboard - Has 10 PCI slots (eight slots are 66MHz/64-bit hot plug and two slots are 33MHz/64-bit non-hot plug) - Mounts on metal t
A6153-69028 12V DC to DC power converter
A6165-69040 Processor power pod - 48V DC to DC converter power pod - One required for each processor
C3751B 2 button PS/2 serial mouse (Quartz Gray) - Has attached 6ft cable with 6-pin mini-din connector
