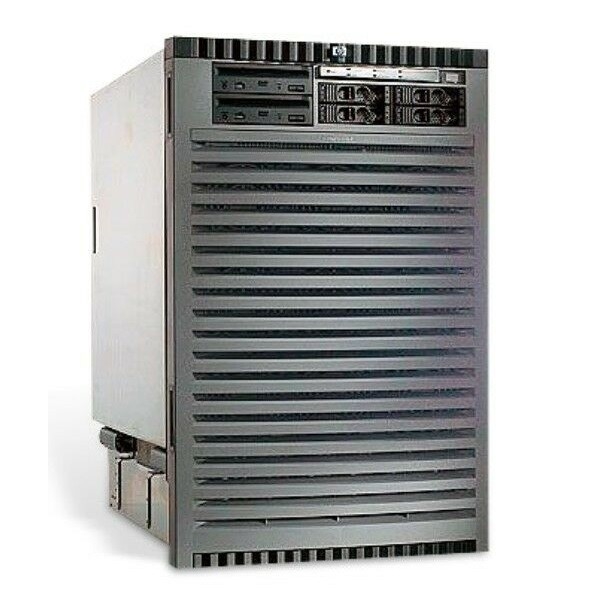

HP Server 12 Way RX8620 FAST Solution AB239A
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | HP Server 12-way RX8620 FAST Solution AB239A | Status: | Stock |
|---|---|---|---|
| Area: | Global | Express: | DHL EMS FEDEX |
| High Light: | HP RX8620 12 Way Server,HP RX8620 motherboard for server pc,12 Way RX8620 AB239A HP Server |
||
HP Server 12-way RX8620 FAST Solution AB239A
component parts for the RX8620 AB239A
| Part Number | Description |
| CPU | |
| A6913-67215 | Cell board - With 1.5GHz processor |
| A6913-69016 | Cell board - With 1.5GHz processor |
| A6913-69104 | Intel Celeron processor - 1.3GHz |
| A6913-69203/A6913-67103 | Cell board assembly - Includes 1.5Ghz Itanium Processor Family (IPF), 6.0MB cache |
| A6913-69204/A6913-67104 | Intel Celeron processor - 1.3GHz |
| A6913-69214 | Cell board - With 1.5GHz processor |
| A6913-69215 | Cell board - Includes 4 processors 1.6GHz, 6.0MB cache |
| A6913-69303 | 900MHz PA-RISC dual core processor |
| AB313-69207 | Cell processor board - MAD9M, 1.6GB - Includes two processors |
| AB548-69102 | Intel Itanium 2 processor - 1.6GHz (McKinley, 400MHz front side bus, 6.0MB level-3 cache) |
| Power | |
| 0957-2183/A6093-69021 | Bulk power supply - Redundant hot-swap power supply - (Celestica) |
| 0957-2187 | PCI power supply module - Hot-swap power module for the PCI backplane |
| VRM | |
| 0950-4122 | Low voltage DC to DC conterter (low voltage VRM) |
| 0950-4123 | High voltage DC to DC conterter (high voltage VRM) |
| 0950-4708 | Low voltage DC to DC conterter (low voltage VRM) |
| 0950-4709 | High voltage DC to DC conterter (high voltage VRM) |
| DVD | |
| AB351-67002/AB351-2100A | Server optical drive - Integrated Drive Electronics (IDE) DVD +RW |
| Fan | |
| A6093-67017 | Front hot-swap smart fan assembly |
| A6093-67018 | Rear hot-swap smart fan assembly |
| A6093-67117 | Front hot-swap smart fan assembly |
| A6093-67118 | Rear hot-swap smart fan assembly |
| A6752-04071 | Smart fan assembly - For hot-swap PCI card cage (PCI C/C) |
| Cable | |
| A6093-63001 | Rear fan power cable assembly |
| A6093-63005 | SBA REO cable kit |
| A6093-63038 | Front fan power cable assembly |
| A6093-63039 | Rear fan power cable assembly |
| A6093-63040 | DC signal distribution cable |
| A6093-63044 | Cable - Intrusion Switch |
| A6093-63048 | Mass storage power cable |
| A6093-63055 | Mass storage data ribbon cable |
| A6093-63058 | SBA REO cable kit |
| A7027-63003 | Cable - Internal smart array RAID cable |
| AB297-2010A | PCI OLR ribbon cable |
| Other | |
| A6093-60107 | AC voltage power distribution board |
| A6093-67007 | AC voltage power distribution board |
| A6093-67114 | PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable |
| A6093-67214 | PCI OLR latching assembly - Disables PCI slots for hot-swap functionality and retains the PCI cards - Includes four OLR housings, 16 OLR buttons, PC board, 16 OLR paddles, and OLR switch cable |
| A6093-69213/A6093-60113 | PCI-X card cage assembly - Includes the PCI-X I/O board, PCI card separators, metal card cage with fan frame |
| A6093-69313/A6093-60013 | PCI Express (Pci-X) card cage kit - Includes the PCI-X I/O board, PCI card separators, metal card cage |
| A6093-69401/AB589B | PCA Keystone - System Backplan |
